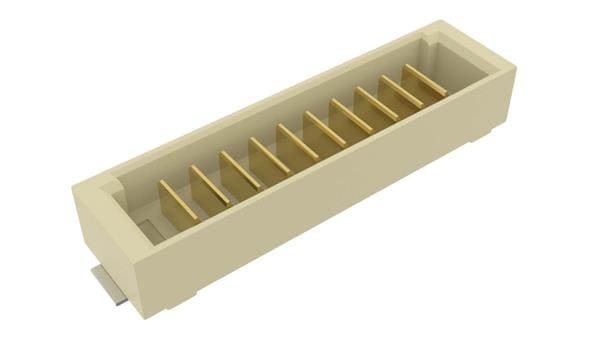

10159560-A00121RLF Amphenol ICC (FCI)

Description: POWERSTAK VERTICAL HEADER P1 10P, Features: Board Guide, Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 100VDC, Current Rating (Amps): 20A, Mounting Type: Surface Mount, Number of Positions: 10, Number of Rows: 1, Style: Board to Board, Operating Temperature: -40°C ~ 125°C, Contact Type: Male Blade, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Natural, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold or Gold, GXT™, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Post: Gold, Contact Shape: Rectangular, Insulation Height: 0.185" (4.70mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic.
