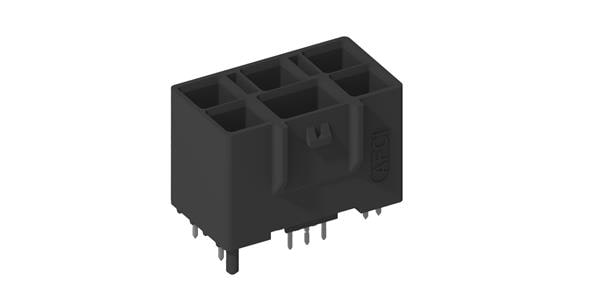

10170709-T01LF Amphenol ICC (FCI)

Description: COMPACT COMBO, VERTICAL BOARD CO, Packaging: Tray, Features: Board Guide, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 11 (6 + 5 Power), Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Contact Shape: Rectangular, Square, Contact Length - Post: 0.157" (4.00mm), Insulation Height: 0.831" (21.10mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic, Row Spacing - Mating: 0.315" (8.00mm).
