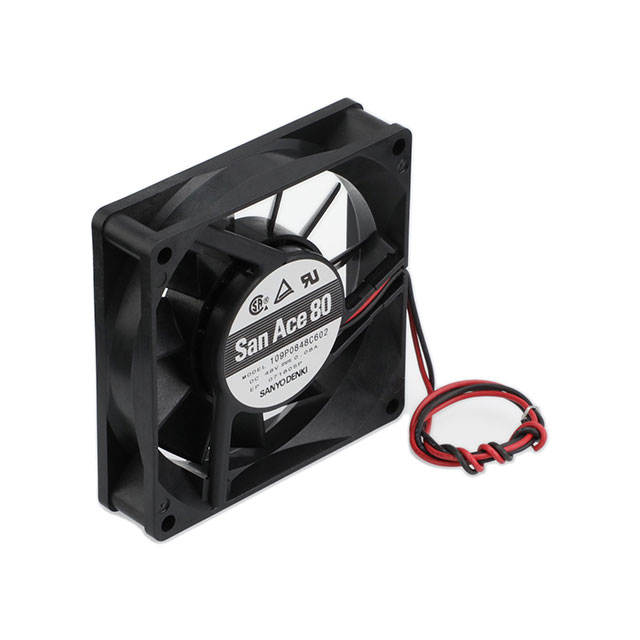

109P0848C602 Sanyo Denki America Inc.
Виробник: Sanyo Denki America Inc.
Description: FAN AXIAL 80X20MM 48VDC WIRE
Power (Watts): 3.84 W
Static Pressure: 0.185 in H2O (46.1 Pa)
Noise: 39.0dB(A)
Fan Type: Tubeaxial
Approval Agency: CSA, TUV, UL
Termination: 2 Wire Leads
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Weight: 0.222 lb (100.7 g)
Width: 20.00mm
Air Flow: 37.8 CFM (1.06m³/min)
RPM: 3700 RPM
Bearing Type: Ball
Size / Dimension: Square - 80mm L x 80mm H
Voltage - Rated: 48VDC
Features: Locked Rotor Protection
Packaging: Box
Відгуки про товар
Написати відгук
Технічний опис 109P0848C602 Sanyo Denki America Inc.
Category: DC48V Fans, Description: Fan: DC; axial; 48VDC; 80x80x20mm; 64.2m3/h; 39dBA; ball; 3700rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 48V DC, Operating voltage: 38...57.6V DC, Fan dimensions: 80x80x20mm, Power consumption: 3.84W, Current rating: 80mA, Fan efficiency: 64.2m3/h, Noise level: 39dBA, Kind of Bearing: ball, Rotational rate/speed: 3700rpm, Min. insulation resistance: 10MΩ, Impeller material: plastic, Enclosure material: plastic, Leads: leads x3, Lead length: 0.3m, Operating temperature: -20...70°C, Flammability rating: UL94V-1, Additional functions: lock sensor; reverse polarity protection, Kind of material: flame retardant.
Інші пропозиції 109P0848C602
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
109P0848C602 | Sanyo Denki |
DC Fans DC Axial Fan, 80x80x20mm, 48VDC |
товару немає в наявності |
В кошику од. на суму грн. |
| 109P0848C602 | SANYO DENKI |
Category: DC48V Fans Description: Fan: DC; axial; 48VDC; 80x80x20mm; 64.2m3/h; 39dBA; ball; 3700rpm Type of fan: DC Kind of fan: axial Supply voltage: 48V DC Operating voltage: 38...57.6V DC Fan dimensions: 80x80x20mm Power consumption: 3.84W Current rating: 80mA Fan efficiency: 64.2m3/h Noise level: 39dBA Kind of Bearing: ball Rotational rate/speed: 3700rpm Min. insulation resistance: 10MΩ Impeller material: plastic Enclosure material: plastic Leads: leads x3 Lead length: 0.3m Operating temperature: -20...70°C Flammability rating: UL94V-1 Additional functions: lock sensor; reverse polarity protection Kind of material: flame retardant |
товару немає в наявності |
Мінімальне замовлення: 31 шт В кошику од. на суму грн. |
| 109P0848C602 |
|
Виробник: Sanyo Denki
DC Fans DC Axial Fan, 80x80x20mm, 48VDC
DC Fans DC Axial Fan, 80x80x20mm, 48VDC
товару немає в наявності
В кошику
од. на суму грн.
| 109P0848C602 |
|
Виробник: SANYO DENKI
Category: DC48V Fans
Description: Fan: DC; axial; 48VDC; 80x80x20mm; 64.2m3/h; 39dBA; ball; 3700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 48V DC
Operating voltage: 38...57.6V DC
Fan dimensions: 80x80x20mm
Power consumption: 3.84W
Current rating: 80mA
Fan efficiency: 64.2m3/h
Noise level: 39dBA
Kind of Bearing: ball
Rotational rate/speed: 3700rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Lead length: 0.3m
Operating temperature: -20...70°C
Flammability rating: UL94V-1
Additional functions: lock sensor; reverse polarity protection
Kind of material: flame retardant
Category: DC48V Fans
Description: Fan: DC; axial; 48VDC; 80x80x20mm; 64.2m3/h; 39dBA; ball; 3700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 48V DC
Operating voltage: 38...57.6V DC
Fan dimensions: 80x80x20mm
Power consumption: 3.84W
Current rating: 80mA
Fan efficiency: 64.2m3/h
Noise level: 39dBA
Kind of Bearing: ball
Rotational rate/speed: 3700rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Lead length: 0.3m
Operating temperature: -20...70°C
Flammability rating: UL94V-1
Additional functions: lock sensor; reverse polarity protection
Kind of material: flame retardant
