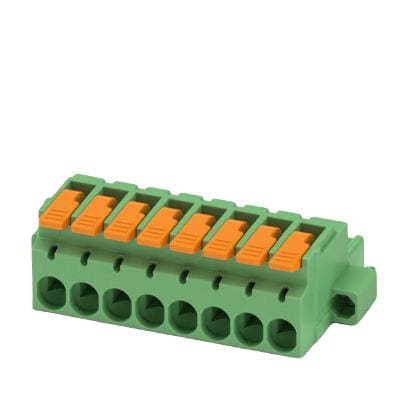

1110635 Phoenix Contact
Виробник: Phoenix Contact
Description: PCB CONNECTOR, NOMINAL CROSS SEC
Packaging: Bulk
Features: Lever Actuated, Mating Flange
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 8
Pitch: 0.200" (5.08mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 105°C
Termination Style: Screwless - Push-In Spring
Current - IEC: 16A
Number of Levels: 1
Wire Gauge or Range - AWG: 12-26 AWG
Wire Gauge or Range - mm²: 0.2-2.5mm²
Positions Per Level: 8
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 16 A
Voltage - IEC: 320 V
Voltage - UL: 300 V
Відгуки про товар
Написати відгук
Технічний опис 1110635 Phoenix Contact
Description: PCB CONNECTOR, NOMINAL CROSS SEC, Packaging: Bulk, Features: Lever Actuated, Mating Flange, Color: Green, Mounting Type: Free Hanging (In-Line), Number of Positions: 8, Pitch: 0.200" (5.08mm), Type: Plug, Female Sockets, Operating Temperature: -40°C ~ 105°C, Termination Style: Screwless - Push-In Spring, Current - IEC: 16A, Number of Levels: 1, Wire Gauge or Range - AWG: 12-26 AWG, Wire Gauge or Range - mm²: 0.2-2.5mm², Positions Per Level: 8, Plug Wire Entry: 180°, Contact Mating Finish: Tin, Part Status: Active, Current - UL: 16 A, Voltage - IEC: 320 V, Voltage - UL: 300 V.
Інші пропозиції 1110635
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
1110635 | Виробник : Phoenix Contact |
PCB Connector, Pitch 5.08 mm, Lever Push-in Connection |
товару немає в наявності |
|
 |
1110635 | Виробник : Phoenix Contact |
Pluggable Terminal Blocks LPC 2,5/18-STF-5,08 |
товару немає в наявності |
|
 |
1110635 | Виробник : PHOENIX CONTACT |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; COMBICON M; 16A; 630V Type of connector: pluggable terminal block Manufacturer series: COMBICON M Current rating: 16A Rated voltage: 0.63kV Electrical mounting: push-in Contact plating: tinned Body material: PA Contacts pitch: 5.08mm Body colour: green Connector: plug Number of pins: 8 Locking system: threaded joint Flammability rating: UL94V-0 Height: 15.39mm Length: 27.37mm Width: 50.82mm |
товару немає в наявності |
