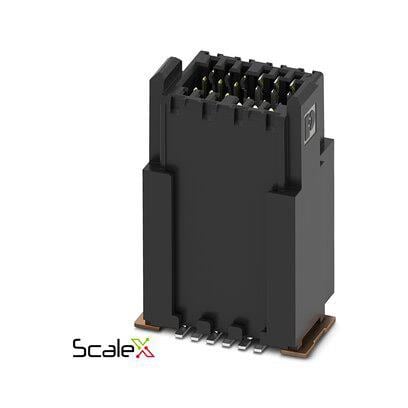

1154013 Phoenix Contact
Виробник: Phoenix ContactDescription: FP 0 8/ 20-MV 8 65
Features: Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 1.7A
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Contact Shape: Rectangular
Insulation Height: 0.541" (13.75mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
на замовлення 250 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 250+ | 382.72 грн |
Відгуки про товар
Написати відгук
Технічний опис 1154013 Phoenix Contact
Description: FP 0 8/ 20-MV 8 65, Features: Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Current Rating (Amps): 1.7A, Mounting Type: Surface Mount, Number of Positions: 20, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.031" (0.80mm), Contact Finish - Mating: Gold, Contact Finish - Post: Tin, Contact Shape: Rectangular, Insulation Height: 0.541" (13.75mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP).
Інші пропозиції 1154013 за ціною від 382.14 грн до 636.52 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1154013 | Виробник : Phoenix Contact |
Description: FP 0 8/ 20-MV 8 65 Features: Solder Retention Packaging: Cut Tape (CT) Connector Type: Header Current Rating (Amps): 1.7A Mounting Type: Surface Mount Number of Positions: 20 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.031" (0.80mm) Contact Finish - Mating: Gold Contact Finish - Post: Tin Contact Shape: Rectangular Insulation Height: 0.541" (13.75mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) |
на замовлення 479 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
1154013 | Виробник : Phoenix Contact |
Board to Board & Mezzanine Connectors FP 0 8/ 20-MV 8 65 |
товару немає в наявності |
