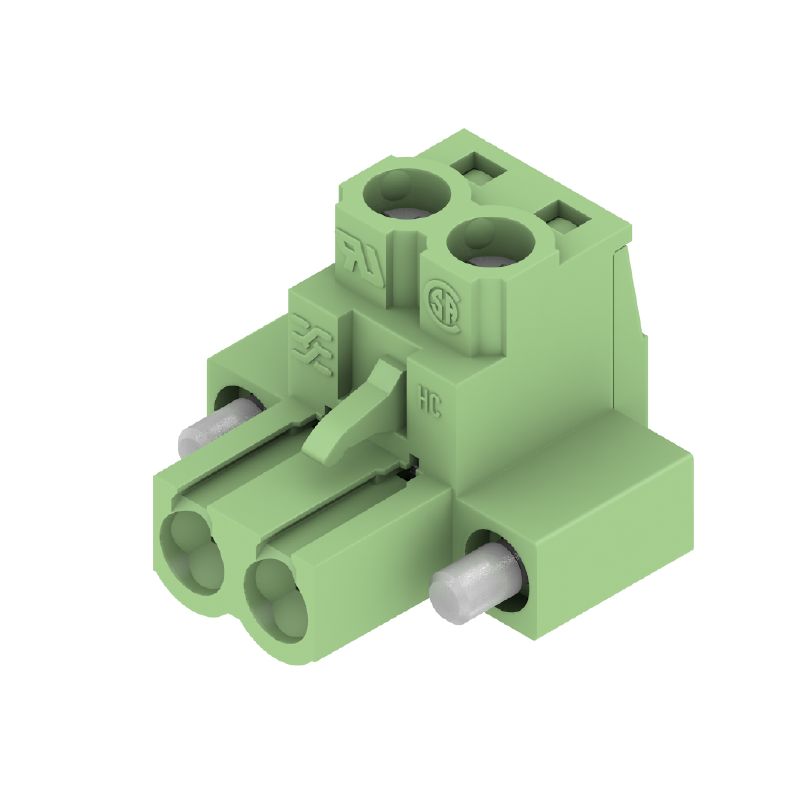

1223790000 Weidmüller
Виробник: WeidmüllerDescription: TERM BLOCK PLUG 2POS 5.08MM
Features: Push Button Actuated, Retention Latches (Non-Wire Side)
Packaging: Box
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 2
Pitch: 0.200" (5.08mm)
Type: Plug, Female Sockets
Operating Temperature: -50°C ~ 100°C
Termination Style: Screw - Clamping Yoke (Tension Sleeve)
Current - IEC: 23A
Number of Levels: 1
Wire Gauge or Range - AWG: 12-26 AWG
Wire Gauge or Range - mm²: 0.2-4mm²
Positions Per Level: 2
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 20 A
Voltage - IEC: 400 V
Voltage - UL: 300 V
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 1223790000 Weidmüller
Description: TERM BLOCK PLUG 2POS 5.08MM, Features: Push Button Actuated, Retention Latches (Non-Wire Side), Packaging: Box, Color: Green, Mounting Type: Free Hanging (In-Line), Number of Positions: 2, Pitch: 0.200" (5.08mm), Type: Plug, Female Sockets, Operating Temperature: -50°C ~ 100°C, Termination Style: Screw - Clamping Yoke (Tension Sleeve), Current - IEC: 23A, Number of Levels: 1, Wire Gauge or Range - AWG: 12-26 AWG, Wire Gauge or Range - mm²: 0.2-4mm², Positions Per Level: 2, Plug Wire Entry: 180°, Contact Mating Finish: Tin, Current - UL: 20 A, Voltage - IEC: 400 V, Voltage - UL: 300 V.
Інші пропозиції 1223790000
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| 1223790000 | Виробник : Weidmuller |
Pluggable Terminal Blocks BLZP 5.08HC/02/180F SN GN BX |
товару немає в наявності |
