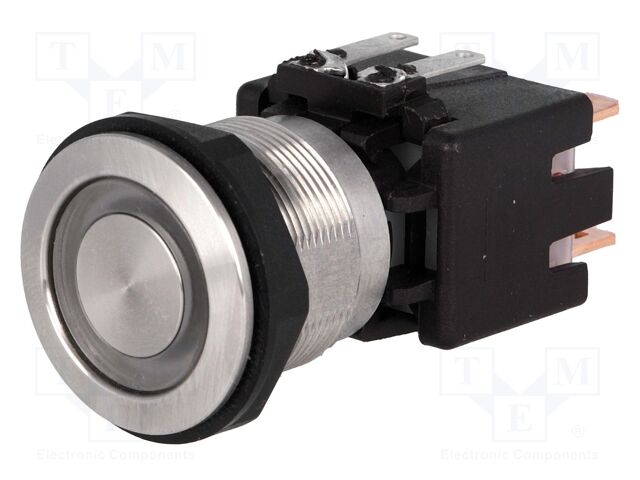

1241.6824.1121000 SCHURTER
Виробник: SCHURTER
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST-NO; 12A/250VAC; 0.5A/125VDC
Backlight colour: red
Button shape: prominent
Leads: connectors
Contacts configuration: DPST-NO
IP rating: IP64
Illumination: LED; ring
Type of switch: vandal resistant
Switching method: OFF-ON
Operating temperature: -20...85°C
Leads dimensions: 4.8x0.8mm
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 0.5A / 125V DC
Mounting hole diameter: Ø19mm
Max. contact resistance:: 100mΩ
Operating Force: 4.5N
Stable positions number: 2
Number of positions: 2
Illumination voltage: 24V DC
Switched voltage: max. 125V DC; max. 250V AC
Electrical life: 50000 cycles
Mechanical durability: 100000 cycles
Manufacturer series: MSM LA 19
Body material: stainless steel
Body colour: silver
Відгуки про товар
Написати відгук
Технічний опис 1241.6824.1121000 SCHURTER
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; DPST-NO; 12A/250VAC; 0.5A/125VDC, Backlight colour: red, Button shape: prominent, Leads: connectors, Contacts configuration: DPST-NO, IP rating: IP64, Illumination: LED; ring, Type of switch: vandal resistant, Switching method: OFF-ON, Operating temperature: -20...85°C, Leads dimensions: 4.8x0.8mm, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 0.5A / 125V DC, Mounting hole diameter: Ø19mm, Max. contact resistance:: 100mΩ, Operating Force: 4.5N, Stable positions number: 2, Number of positions: 2, Illumination voltage: 24V DC, Switched voltage: max. 125V DC; max. 250V AC, Electrical life: 50000 cycles, Mechanical durability: 100000 cycles, Manufacturer series: MSM LA 19, Body material: stainless steel, Body colour: silver.
Інші пропозиції 1241.6824.1121000 за ціною від 3066.20 грн до 4672.55 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1241.6824.1121000 | SCHURTER Inc. |
Description: SWITCH PUSHBUTTON DPST 12A 250V Packaging: Bulk Current Rating (Amps): 12A (AC/DC) Mounting Type: Panel Mount, Front Circuit: DPST Type: Anti-Vandal, Illuminated Switch Function: Off-On Operating Temperature: -20°C ~ 85°C Termination Style: Quick Connect - 0.187" (4.7mm) Illumination Type, Color: LED, Red Illumination Voltage (Nominal): 24 VDC Actuator Type: Round, Button Ingress Protection: IP64 - Dust Tight, Water Resistant Panel Cutout Dimensions: Circular - 19.10mm Dia Color - Actuator/Cap: Silver Actuator Marking: No Marking Part Status: Active Voltage Rating - AC: 250 V Voltage Rating - DC: 30 V |
на замовлення 9 шт: термін постачання 21-31 дні (днів) |
|
||||||
 |
1241.6824.1121000 | Schurter |
Pushbutton Switches Latch 12A 250VAC 19MM RI SF RT |
на замовлення 6 шт: термін постачання 21-30 дні (днів) |
|
| 1241.6824.1121000 |
|
Виробник: SCHURTER Inc.
Description: SWITCH PUSHBUTTON DPST 12A 250V
Packaging: Bulk
Current Rating (Amps): 12A (AC/DC)
Mounting Type: Panel Mount, Front
Circuit: DPST
Type: Anti-Vandal, Illuminated
Switch Function: Off-On
Operating Temperature: -20°C ~ 85°C
Termination Style: Quick Connect - 0.187" (4.7mm)
Illumination Type, Color: LED, Red
Illumination Voltage (Nominal): 24 VDC
Actuator Type: Round, Button
Ingress Protection: IP64 - Dust Tight, Water Resistant
Panel Cutout Dimensions: Circular - 19.10mm Dia
Color - Actuator/Cap: Silver
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - AC: 250 V
Voltage Rating - DC: 30 V
Description: SWITCH PUSHBUTTON DPST 12A 250V
Packaging: Bulk
Current Rating (Amps): 12A (AC/DC)
Mounting Type: Panel Mount, Front
Circuit: DPST
Type: Anti-Vandal, Illuminated
Switch Function: Off-On
Operating Temperature: -20°C ~ 85°C
Termination Style: Quick Connect - 0.187" (4.7mm)
Illumination Type, Color: LED, Red
Illumination Voltage (Nominal): 24 VDC
Actuator Type: Round, Button
Ingress Protection: IP64 - Dust Tight, Water Resistant
Panel Cutout Dimensions: Circular - 19.10mm Dia
Color - Actuator/Cap: Silver
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - AC: 250 V
Voltage Rating - DC: 30 V
на замовлення 9 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 3981.13 грн |
| 1241.6824.1121000 |
|
Виробник: Schurter
Pushbutton Switches Latch 12A 250VAC 19MM RI SF RT
Pushbutton Switches Latch 12A 250VAC 19MM RI SF RT
на замовлення 6 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 4672.55 грн |
| 10+ | 3991.96 грн |
| 20+ | 3066.20 грн |
