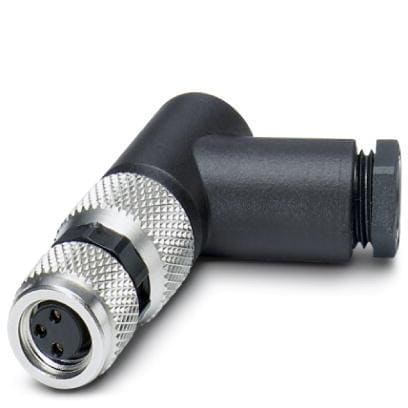

1407582 Phoenix Contact
Виробник: Phoenix Contact
Description: CONN RCPT FMALE 3POS GOLD SCREW
Fastening Type: Threaded
Operating Temperature: -40°C ~ 85°C
Shell Size - Insert: M8-3
Orientation: A
Number of Positions: 3
Mounting Type: Free Hanging (In-Line), Angled
Current Rating (Amps): 4A
Voltage Rating: 48VAC, 60VDC
Color: Silver
Connector Type: Receptacle, Female Sockets
Features: Backshell, Coupling Nut
Packaging: Bulk
Primary Material: Metal
Shell Finish: Nickel
Shell Material: Brass
Part Status: Active
Contact Finish - Mating: Gold
Material Flammability Rating: UL94 HB
Cable Opening: 0.138" ~ 0.197" (3.50mm ~ 5.00mm)
Ingress Protection: IP67 - Dust Tight, Waterproof
Termination: Screw
Відгуки про товар
Написати відгук
Технічний опис 1407582 Phoenix Contact
Description: CONN RCPT FMALE 3POS GOLD SCREW, Fastening Type: Threaded, Operating Temperature: -40°C ~ 85°C, Shell Size - Insert: M8-3, Orientation: A, Number of Positions: 3, Mounting Type: Free Hanging (In-Line), Angled, Current Rating (Amps): 4A, Voltage Rating: 48VAC, 60VDC, Color: Silver, Connector Type: Receptacle, Female Sockets, Features: Backshell, Coupling Nut, Packaging: Bulk, Primary Material: Metal, Shell Finish: Nickel, Shell Material: Brass, Part Status: Active, Contact Finish - Mating: Gold, Material Flammability Rating: UL94 HB, Cable Opening: 0.138" ~ 0.197" (3.50mm ~ 5.00mm), Ingress Protection: IP67 - Dust Tight, Waterproof, Termination: Screw.
Інші пропозиції 1407582 за ціною від 1836.69 грн до 1836.69 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||
|---|---|---|---|---|---|---|---|
 |
1407582 | PHOENIX CONTACT |
Category: M8 connectors Description: Connector: M8; PIN: 3; 4A; 48V; IP67; angled; unshielded; plug Type of connector: M8 Number of pins: 3 Rated voltage: 48V IP rating: IP67 Spatial orientation: angled Connector: plug Electrical mounting: screw terminal Polarisation: A code Wire size: 26AWG...20AWG Contact material: CuZn Gasket material: NBR Contact plating: gold-plated Connector variant: unshielded Wire cross-section: 0.14...0.5mm2 Current rating: 4A |
на замовлення 1 шт: термін постачання 14-30 дні (днів) |
|
||
 |
1407582 | Phoenix Contact |
Circular Metric Connectors SACC-M 8FR-3CON-M-SW |
на замовлення 11 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| 1407582 |
|
Виробник: PHOENIX CONTACT
Category: M8 connectors
Description: Connector: M8; PIN: 3; 4A; 48V; IP67; angled; unshielded; plug
Type of connector: M8
Number of pins: 3
Rated voltage: 48V
IP rating: IP67
Spatial orientation: angled
Connector: plug
Electrical mounting: screw terminal
Polarisation: A code
Wire size: 26AWG...20AWG
Contact material: CuZn
Gasket material: NBR
Contact plating: gold-plated
Connector variant: unshielded
Wire cross-section: 0.14...0.5mm2
Current rating: 4A
Category: M8 connectors
Description: Connector: M8; PIN: 3; 4A; 48V; IP67; angled; unshielded; plug
Type of connector: M8
Number of pins: 3
Rated voltage: 48V
IP rating: IP67
Spatial orientation: angled
Connector: plug
Electrical mounting: screw terminal
Polarisation: A code
Wire size: 26AWG...20AWG
Contact material: CuZn
Gasket material: NBR
Contact plating: gold-plated
Connector variant: unshielded
Wire cross-section: 0.14...0.5mm2
Current rating: 4A
на замовлення 1 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1836.69 грн |
| 1407582 |
|
Виробник: Phoenix Contact
Circular Metric Connectors SACC-M 8FR-3CON-M-SW
Circular Metric Connectors SACC-M 8FR-3CON-M-SW
на замовлення 11 шт:
термін постачання 21-30 дні (днів)
