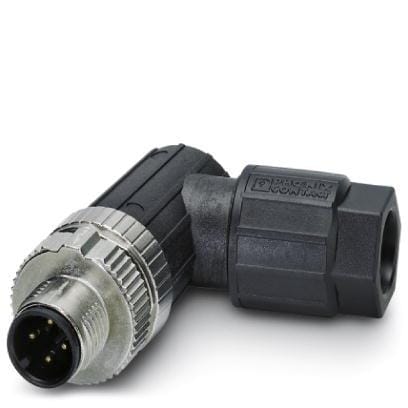

1424654 Phoenix Contact
Виробник: Phoenix Contact
Description: CONN PLUG MALE 4P SPRING-CAGE
Features: Backshell
Packaging: Bulk
Connector Type: Plug, Male Pins
Color: Black, Silver
Voltage Rating: 250VAC/DC
Current Rating (Amps): 4A
Mounting Type: Free Hanging (In-Line), Right Angle
Shielding: Unshielded
Number of Positions: 4
Orientation: A
Shell Size - Insert: M12-4
Operating Temperature: -40°C ~ 85°C
Fastening Type: Push-Twist
Termination: Spring-Cage
Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Material Flammability Rating: UL94 V-0
Contact Finish - Mating: Gold
Part Status: Active
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Primary Material: Metal
Відгуки про товар
Написати відгук
Технічний опис 1424654 Phoenix Contact
Description: CONN PLUG MALE 4P SPRING-CAGE, Features: Backshell, Packaging: Bulk, Connector Type: Plug, Male Pins, Color: Black, Silver, Voltage Rating: 250VAC/DC, Current Rating (Amps): 4A, Mounting Type: Free Hanging (In-Line), Right Angle, Shielding: Unshielded, Number of Positions: 4, Orientation: A, Shell Size - Insert: M12-4, Operating Temperature: -40°C ~ 85°C, Fastening Type: Push-Twist, Termination: Spring-Cage, Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof, Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm), Material Flammability Rating: UL94 V-0, Contact Finish - Mating: Gold, Part Status: Active, Shell Material: Zinc Die Cast, Shell Finish: Nickel, Primary Material: Metal.
Інші пропозиції 1424654 за ціною від 910.76 грн до 1483.49 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
1424654 | PHOENIX CONTACT |
Category: M12 plugs and sockets Description: Connector: M12; plug; PIN: 4; 250V; angled; IP65; push-lock; A code Spatial orientation: angled Contact material: CuSn Contact plating: gold-plated; nickel plated IP rating: IP65 Type of connector: M12 Gasket material: NBR Connector: plug Electrical mounting: push-lock Connector variant: unshielded Wire cross-section: 0.14...0.75mm2 Rated voltage: 0.25kV Number of pins: 4 Current rating: 4A Wire size: 26AWG...18AWG Polarisation: A code |
на замовлення 1 шт: термін постачання 14-30 дні (днів) |
|
||||
 |
1424654 | Phoenix Contact |
Connector For Sensor |
на замовлення 38 шт: термін постачання 21-31 дні (днів) |
|
| 1424654 |
|
Виробник: PHOENIX CONTACT
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; 250V; angled; IP65; push-lock; A code
Spatial orientation: angled
Contact material: CuSn
Contact plating: gold-plated; nickel plated
IP rating: IP65
Type of connector: M12
Gasket material: NBR
Connector: plug
Electrical mounting: push-lock
Connector variant: unshielded
Wire cross-section: 0.14...0.75mm2
Rated voltage: 0.25kV
Number of pins: 4
Current rating: 4A
Wire size: 26AWG...18AWG
Polarisation: A code
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; 250V; angled; IP65; push-lock; A code
Spatial orientation: angled
Contact material: CuSn
Contact plating: gold-plated; nickel plated
IP rating: IP65
Type of connector: M12
Gasket material: NBR
Connector: plug
Electrical mounting: push-lock
Connector variant: unshielded
Wire cross-section: 0.14...0.75mm2
Rated voltage: 0.25kV
Number of pins: 4
Current rating: 4A
Wire size: 26AWG...18AWG
Polarisation: A code
на замовлення 1 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 910.76 грн |
| 1424654 |
|
Виробник: Phoenix Contact
Connector For Sensor
Connector For Sensor
на замовлення 38 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 10+ | 1483.49 грн |
| 11+ | 1385.70 грн |
