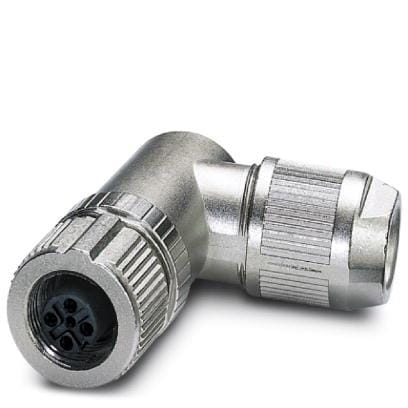

Технічний опис 1424685 Phoenix Contact
Description: CONN RCPT FMALE 4P SPRING-CAGE, Features: Backshell, Coupling Nut, Packaging: Bulk, Connector Type: Receptacle, Female Sockets, Color: Silver, Voltage Rating: 48VAC, 60VDC, Current Rating (Amps): 4A, Mounting Type: Free Hanging (In-Line), Right Angle, Shielding: Shielded, Number of Positions: 4, Orientation: D, Shell Size - Insert: M12-4, Operating Temperature: -40°C ~ 85°C, Fastening Type: Push-Twist, Termination: Spring-Cage, Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof, Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm), Material Flammability Rating: UL94 V-0, Contact Finish - Mating: Gold, Part Status: Active, Shell Material: Zinc Die Cast, Shell Finish: Nickel, Primary Material: Metal.
Інші пропозиції 1424685
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
|---|---|---|---|---|---|
 |
1424685 | Phoenix Contact |
 Description: CONN RCPT FMALE 4P SPRING-CAGEFeatures: Backshell, Coupling Nut Packaging: Bulk Connector Type: Receptacle, Female Sockets Color: Silver Voltage Rating: 48VAC, 60VDC Current Rating (Amps): 4A Mounting Type: Free Hanging (In-Line), Right Angle Shielding: Shielded Number of Positions: 4 Orientation: D Shell Size - Insert: M12-4 Operating Temperature: -40°C ~ 85°C Fastening Type: Push-Twist Termination: Spring-Cage Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm) Material Flammability Rating: UL94 V-0 Contact Finish - Mating: Gold Part Status: Active Shell Material: Zinc Die Cast Shell Finish: Nickel Primary Material: Metal |
товару немає в наявності |
В кошику од. на суму грн. |
 |
1424685 | PHOENIX CONTACT |
Category: M12 plugs and sockets Description: Connector: M12; plug; PIN: 4; 48V; angled; IP65; push-lock; D code; 4A Type of connector: M12 Connector: plug Number of pins: 4 Rated voltage: 48V Spatial orientation: angled IP rating: IP65 Electrical mounting: push-lock Polarisation: D code Current rating: 4A Connector variant: shielded Wire cross-section: 0.14...0.75mm2 Wire size: 26AWG...18AWG Contact material: CuSn Contact plating: gold-plated; nickel plated Gasket material: NBR |
товару немає в наявності |
В кошику од. на суму грн. |
| 1424685 |
|
Виробник: Phoenix Contact
Description: CONN RCPT FMALE 4P SPRING-CAGE
Features: Backshell, Coupling Nut
Packaging: Bulk
Connector Type: Receptacle, Female Sockets
Color: Silver
Voltage Rating: 48VAC, 60VDC
Current Rating (Amps): 4A
Mounting Type: Free Hanging (In-Line), Right Angle
Shielding: Shielded
Number of Positions: 4
Orientation: D
Shell Size - Insert: M12-4
Operating Temperature: -40°C ~ 85°C
Fastening Type: Push-Twist
Termination: Spring-Cage
Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Material Flammability Rating: UL94 V-0
Contact Finish - Mating: Gold
Part Status: Active
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Primary Material: Metal
Description: CONN RCPT FMALE 4P SPRING-CAGE
Features: Backshell, Coupling Nut
Packaging: Bulk
Connector Type: Receptacle, Female Sockets
Color: Silver
Voltage Rating: 48VAC, 60VDC
Current Rating (Amps): 4A
Mounting Type: Free Hanging (In-Line), Right Angle
Shielding: Shielded
Number of Positions: 4
Orientation: D
Shell Size - Insert: M12-4
Operating Temperature: -40°C ~ 85°C
Fastening Type: Push-Twist
Termination: Spring-Cage
Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Material Flammability Rating: UL94 V-0
Contact Finish - Mating: Gold
Part Status: Active
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Primary Material: Metal
товару немає в наявності
В кошику
од. на суму грн.
| 1424685 |
|
Виробник: PHOENIX CONTACT
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; 48V; angled; IP65; push-lock; D code; 4A
Type of connector: M12
Connector: plug
Number of pins: 4
Rated voltage: 48V
Spatial orientation: angled
IP rating: IP65
Electrical mounting: push-lock
Polarisation: D code
Current rating: 4A
Connector variant: shielded
Wire cross-section: 0.14...0.75mm2
Wire size: 26AWG...18AWG
Contact material: CuSn
Contact plating: gold-plated; nickel plated
Gasket material: NBR
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; 48V; angled; IP65; push-lock; D code; 4A
Type of connector: M12
Connector: plug
Number of pins: 4
Rated voltage: 48V
Spatial orientation: angled
IP rating: IP65
Electrical mounting: push-lock
Polarisation: D code
Current rating: 4A
Connector variant: shielded
Wire cross-section: 0.14...0.75mm2
Wire size: 26AWG...18AWG
Contact material: CuSn
Contact plating: gold-plated; nickel plated
Gasket material: NBR
товару немає в наявності
В кошику
од. на суму грн.
