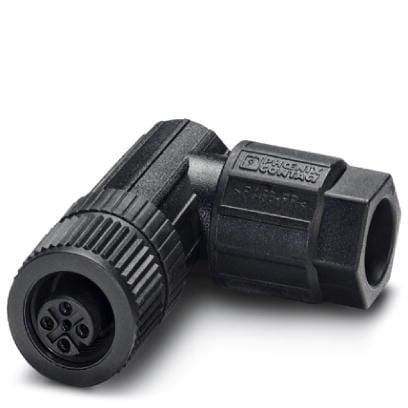

1424694 Phoenix Contact
Виробник: Phoenix Contact
Description: CONN RCPT FMALE 4P SPRING-CAGE
Packaging: Bulk
Features: Backshell, Coupling Nut
Connector Type: Receptacle, Female Sockets
Color: Black
Voltage Rating: 250VAC/DC
Current Rating (Amps): 4A
Mounting Type: Free Hanging (In-Line), Angled
Number of Positions: 4
Orientation: A
Shell Size - Insert: M12-4
Operating Temperature: -40°C ~ 85°C
Fastening Type: Threaded
Termination: Spring-Cage
Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Material Flammability Rating: UL94 V-0
Contact Finish - Mating: Gold
Part Status: Active
Shell Material: Plastic
Primary Material: Plastic
Відгуки про товар
Написати відгук
Технічний опис 1424694 Phoenix Contact
Description: CONN RCPT FMALE 4P SPRING-CAGE, Packaging: Bulk, Features: Backshell, Coupling Nut, Connector Type: Receptacle, Female Sockets, Color: Black, Voltage Rating: 250VAC/DC, Current Rating (Amps): 4A, Mounting Type: Free Hanging (In-Line), Angled, Number of Positions: 4, Orientation: A, Shell Size - Insert: M12-4, Operating Temperature: -40°C ~ 85°C, Fastening Type: Threaded, Termination: Spring-Cage, Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof, Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm), Material Flammability Rating: UL94 V-0, Contact Finish - Mating: Gold, Part Status: Active, Shell Material: Plastic, Primary Material: Plastic.
Інші пропозиції 1424694 за ціною від 995.66 грн до 995.66 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
1424694 | Виробник : Phoenix Contact |
Circular Metric Connectors SACC-M12FR-4PL |
на замовлення 1 шт: термін постачання 21-30 дні (днів) |
|
||||
 |
1424694 | Виробник : PHOENIX CONTACT |
Category: M12 plugs and sockets Description: Connector: M12; plug; PIN: 4; 250V; angled; IP65; push-lock; A code Contact plating: gold-plated; nickel plated IP rating: IP65 Gasket material: NBR Connector: plug Electrical mounting: push-lock Connector variant: unshielded Wire cross-section: 0.14...0.75mm2 Number of pins: 4 Current rating: 4A Wire size: 26AWG...18AWG Rated voltage: 0.25kV Type of connector: M12 Polarisation: A code Spatial orientation: angled Contact material: CuSn |
товару немає в наявності |
