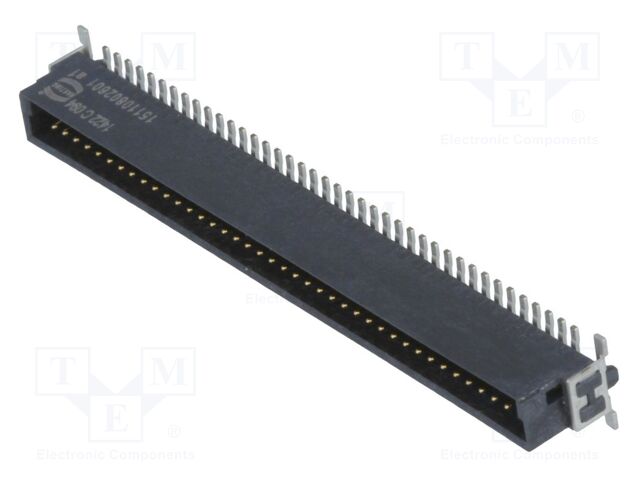

15110802601333 HARTING
Виробник: HARTINGCategory: Board-to-board connectors
Description: Connector: PCB-cable/PCB; socket; male; PIN: 80; har-flex®; 150VAC
Number of pins: 80
Maximum current: 2.3A
Contacts pitch: 1.27mm
Electrical mounting: SMT
Manufacturer series: har-flex®
Spatial orientation: vertical
Engineering PN: har-flex str m 1.75mm 80p PL1
Type of connector: PCB-cable/PCB
Connector: socket
Kind of connector: male
Mechanical durability: 500 cycles
Rated voltage: 150V AC
Operating temperature: -55...125°C
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 15110802601333 HARTING
Description: HAR-FLEX STRAIGHT MALE 1.75MM, 8, Features: Board Guide, Packaging: Bulk, Connector Type: Header, Voltage Rating: 150V, Mounting Type: Surface Mount, Number of Positions: 80, Number of Rows: 2, Style: Board to Board, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.260" (6.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.157" (4.00mm).
Інші пропозиції 15110802601333
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
15110802601333 | Виробник : HARTING |
Description: HAR-FLEX STRAIGHT MALE 1.75MM, 8 Features: Board Guide Packaging: Bulk Connector Type: Header Voltage Rating: 150V Mounting Type: Surface Mount Number of Positions: 80 Number of Rows: 2 Style: Board to Board Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish - Post: Tin Contact Shape: Square Insulation Height: 0.260" (6.60mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.157" (4.00mm) |
товару немає в наявності |
|
|
|
15110802601333 | Виробник : HARTING |
Category: Board-to-board connectors Description: Connector: PCB-cable/PCB; socket; male; PIN: 80; har-flex®; 150VAC Number of pins: 80 Maximum current: 2.3A Contacts pitch: 1.27mm Electrical mounting: SMT Manufacturer series: har-flex® Spatial orientation: vertical Engineering PN: har-flex str m 1.75mm 80p PL1 Type of connector: PCB-cable/PCB Connector: socket Kind of connector: male Mechanical durability: 500 cycles Rated voltage: 150V AC Operating temperature: -55...125°C |
