Продукція > HARTING > 15150202601333
15150202601333

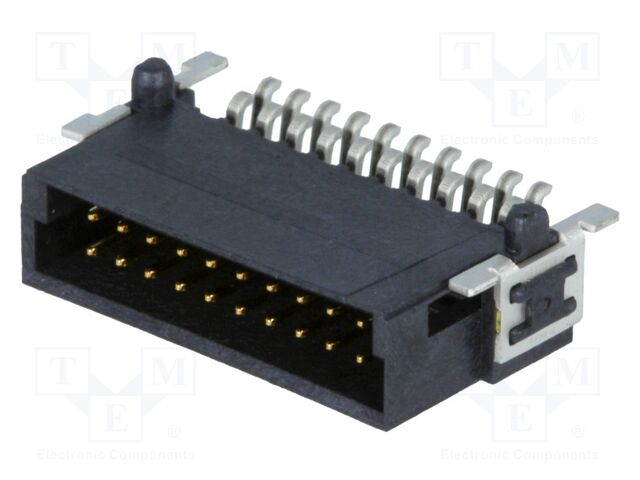

15150202601333 HARTING

pVersion=0046&contRep=ZT&docId=005056AB752F1ED5B7F2BA2A56AEF1BF&compId=1515XXXX601.PDF?ci_sign=35ce87ec26942c8bd36385a25552815328f54503 pVersion=0046&contRep=ZT&docId=005056AB752F1EE585CC759391536469&compId=harflex.pdf?ci_sign=371008ea520abb50c45d6ccaae91d9ff9b245390 Виробник: HARTING
Category: Board-to-board connectors
Description: Connector: PCB-cable/PCB; socket; male; PIN: 20; har-flex®; 150VAC
Kind of connector: male
Engineering PN: har-flex ang m 20p PL1
Spatial orientation: horizontal
Type of connector: PCB-cable/PCB
Connector: socket
Electrical mounting: SMT
Operating temperature: -55...125°C
Contacts pitch: 1.27mm
Maximum current: 2.3A
Rated voltage: 150V AC
Number of pins: 20
Mechanical durability: 500 cycles
Manufacturer series: har-flex®
на замовлення 4 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
2+387.82 грн
3+322.13 грн
4+274.64 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис 15150202601333 HARTING

Description: HAR-FLEX ANGLED MALE, 20PIN, PL1, Features: Board Guide, Solder Retention, Packaging: Bulk, Connector Type: Header, Mounting Type: Surface Mount, Right Angle, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.167" (4.25mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm).

Інші пропозиції 15150202601333 за ціною від 311.52 грн до 465.38 грн

Фото Назва Виробник Інформація Доступність
Ціна
15150202601333 15150202601333 Виробник : HARTING pVersion=0046&contRep=ZT&docId=005056AB752F1ED5B7F2BA2A56AEF1BF&compId=1515XXXX601.PDF?ci_sign=35ce87ec26942c8bd36385a25552815328f54503 pVersion=0046&contRep=ZT&docId=005056AB752F1EE585CC759391536469&compId=harflex.pdf?ci_sign=371008ea520abb50c45d6ccaae91d9ff9b245390 Category: Board-to-board connectors
Description: Connector: PCB-cable/PCB; socket; male; PIN: 20; har-flex®; 150VAC
Kind of connector: male
Engineering PN: har-flex ang m 20p PL1
Spatial orientation: horizontal
Type of connector: PCB-cable/PCB
Connector: socket
Electrical mounting: SMT
Operating temperature: -55...125°C
Contacts pitch: 1.27mm
Maximum current: 2.3A
Rated voltage: 150V AC
Number of pins: 20
Mechanical durability: 500 cycles
Manufacturer series: har-flex®
кількість в упаковці: 1 шт
на замовлення 4 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
1+465.38 грн
3+401.42 грн
4+329.57 грн
5+328.62 грн
10+311.52 грн
В кошику  од. на суму  грн.
15150202601333 15150202601333 Виробник : Harting 1515xxxx601xxx_100223537drw008d.pdf Conn Shrouded Header M 20 POS 1.27mm Solder RA Side Entry SMD har-flex® Sample
товару немає в наявності
В кошику  од. на суму  грн.
15150202601333 15150202601333 Виробник : HARTING PDF_DS_15151200301.pdf Description: HAR-FLEX ANGLED MALE, 20PIN, PL1
Features: Board Guide, Solder Retention
Packaging: Bulk
Connector Type: Header
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.167" (4.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
товару немає в наявності
В кошику  од. на суму  грн.
