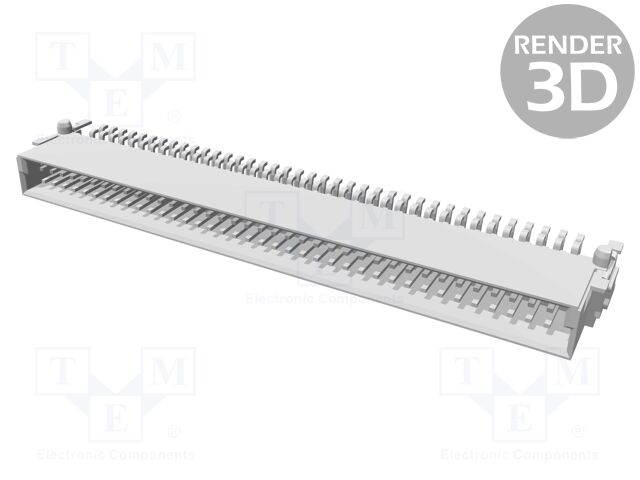

15150762601000 HARTING
Виробник: HARTING
Category: Board-to-board connectors
Description: Connector: PCB-cable/PCB; male; PIN: 76; 1.27mm; har-flex®; 2.3A
Operating temperature: -55...125°C
Connector series: har-flex®
Electrical mounting: SMT
Type of connector: PCB-cable/PCB
Number of pieces on reel: 560pcs.
Kind of connector: male
Connector: socket
Spatial orientation: horizontal
Rated voltage: 150V AC
Maximum current: 2.3A
Contacts pitch: 1.27mm
Number of pins: 76
Mechanical durability: 500 cycles
кількість в упаковці: 1 шт
Category: Board-to-board connectors
Description: Connector: PCB-cable/PCB; male; PIN: 76; 1.27mm; har-flex®; 2.3A
Operating temperature: -55...125°C
Connector series: har-flex®
Electrical mounting: SMT
Type of connector: PCB-cable/PCB
Number of pieces on reel: 560pcs.
Kind of connector: male
Connector: socket
Spatial orientation: horizontal
Rated voltage: 150V AC
Maximum current: 2.3A
Contacts pitch: 1.27mm
Number of pins: 76
Mechanical durability: 500 cycles
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис 15150762601000 HARTING
Description: HAR-FLEX ANGLED MALE, 76PIN, PL1, Packaging: Bulk, Connector Type: Header, Mounting Type: Surface Mount, Right Angle, Number of Positions: 76, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.167" (4.25mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm).
