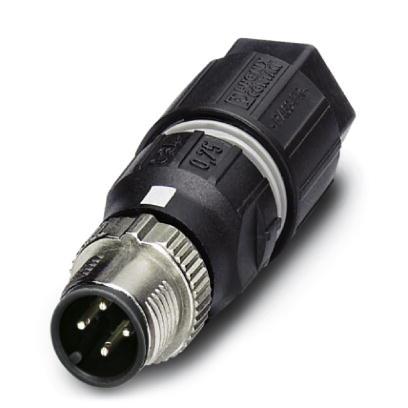

1521591 Phoenix Contact
Виробник: Phoenix ContactDescription: CONN PLUG MALE 4POS GOLD IDC
Features: Backshell
Packaging: Bulk
Connector Type: Plug, Male Pins
Color: Black, Silver
Voltage Rating: 250V
Current Rating (Amps): 4A
Mounting Type: Free Hanging (In-Line)
Number of Positions: 4
Orientation: A
Shell Size - Insert: M12-4
Operating Temperature: -25°C ~ 80°C
Fastening Type: Push-Twist
Termination: IDC
Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Material Flammability Rating: UL94 V-0
Contact Finish - Mating: Gold
Part Status: Active
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Primary Material: Metal
на замовлення 289 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1153.13 грн |
Відгуки про товар
Написати відгук
Технічний опис 1521591 Phoenix Contact
Description: CONN PLUG MALE 4POS GOLD IDC, Features: Backshell, Packaging: Bulk, Connector Type: Plug, Male Pins, Color: Black, Silver, Voltage Rating: 250V, Current Rating (Amps): 4A, Mounting Type: Free Hanging (In-Line), Number of Positions: 4, Orientation: A, Shell Size - Insert: M12-4, Operating Temperature: -25°C ~ 80°C, Fastening Type: Push-Twist, Termination: IDC, Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof, Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm), Material Flammability Rating: UL94 V-0, Contact Finish - Mating: Gold, Part Status: Active, Shell Material: Zinc Die Cast, Shell Finish: Nickel, Primary Material: Metal.
Інші пропозиції 1521591 за ціною від 1057.91 грн до 1525.36 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1521591 | Виробник : Phoenix Contact |
Circular Metric Connectors SPEEDCON-SACC-M12MS 4QO-0.75-M SCO |
на замовлення 102 шт: термін постачання 21-30 дні (днів) |
|
||||||||
 |
1521591 | Виробник : Phoenix Contact |
Sensor/actuator connector, Universal, 4-position, Plug straight M12 SPEEDCON, A-coded, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm to 8 mm |
на замовлення 46 шт: термін постачання 21-31 дні (днів) |
|
||||||||
|
|
1521591 | Виробник : Phoenix Contact |
Sensor/actuator connector, Universal, 4-position, Plug straight M12 SPEEDCON, A-coded, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm to 8 mm |
товару немає в наявності |
|||||||||
|
|
1521591 | Виробник : Phoenix Contact |
Sensor/actuator connector, Universal, 4-position, Plug straight M12 SPEEDCON, A-coded, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm to 8 mm |
товару немає в наявності |
|||||||||
 |
1521591 | Виробник : PHOENIX CONTACT |
Category: M12 plugs and sockets Description: Connector: M12; plug; PIN: 4; male; 250V; straight; IP65,IP67; IDC Type of connector: M12 Connector: plug Number of pins: 4 Kind of connector: male Rated voltage: 250V Spatial orientation: straight IP rating: IP65; IP67 Electrical mounting: IDC Mechanical mounting: for cable Contact plating: tinned Polarisation: A code - DeviceNet / CANopen Locking system: external thread; threaded joint Current rating: 4A Wire cross-section: 0.34...0.75mm2 Cable external diameter: 4...8mm Wire size: 22AWG...18AWG кількість в упаковці: 1 шт |
товару немає в наявності |
|||||||||
|
|
1521591 | Виробник : PHOENIX CONTACT |
Category: M12 plugs and sockets Description: Connector: M12; plug; PIN: 4; male; 250V; straight; IP65,IP67; IDC Type of connector: M12 Connector: plug Number of pins: 4 Kind of connector: male Rated voltage: 250V Spatial orientation: straight IP rating: IP65; IP67 Electrical mounting: IDC Mechanical mounting: for cable Contact plating: tinned Polarisation: A code - DeviceNet / CANopen Locking system: external thread; threaded joint Current rating: 4A Wire cross-section: 0.34...0.75mm2 Cable external diameter: 4...8mm Wire size: 22AWG...18AWG |
товару немає в наявності |
