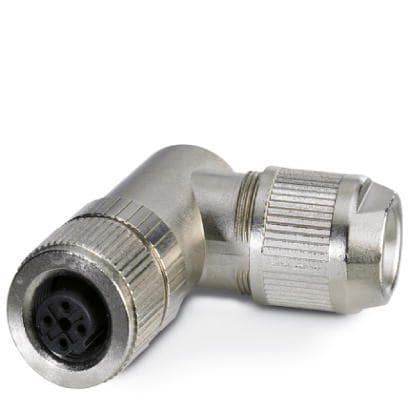

1553637 Phoenix Contact
Виробник: Phoenix Contact
Description: CONN RCPT FMALE 4POS GOLD IDC
Features: Backshell, Coupling Nut
Packaging: Bulk
Connector Type: Receptacle, Female Sockets
Color: Silver
Voltage Rating: 48VAC, 60VDC
Current Rating (Amps): 1.75A
Mounting Type: Free Hanging (In-Line), Angled
Shielding: Shielded
Number of Positions: 4
Orientation: D
Shell Size - Insert: M12-4
Operating Temperature: -40°C ~ 85°C
Fastening Type: Threaded
Termination: IDC
Ingress Protection: IP67 - Dust Tight, Waterproof
Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Material Flammability Rating: UL94 V-0
Contact Finish - Mating: Gold
Shell Material: Brass
Shell Finish: Nickel
Primary Material: Metal
Відгуки про товар
Написати відгук
Технічний опис 1553637 Phoenix Contact
Description: CONN RCPT FMALE 4POS GOLD IDC, Features: Backshell, Coupling Nut, Packaging: Bulk, Connector Type: Receptacle, Female Sockets, Color: Silver, Voltage Rating: 48VAC, 60VDC, Current Rating (Amps): 1.75A, Mounting Type: Free Hanging (In-Line), Angled, Shielding: Shielded, Number of Positions: 4, Orientation: D, Shell Size - Insert: M12-4, Operating Temperature: -40°C ~ 85°C, Fastening Type: Threaded, Termination: IDC, Ingress Protection: IP67 - Dust Tight, Waterproof, Cable Opening: 0.157" ~ 0.315" (4.00mm ~ 8.00mm), Material Flammability Rating: UL94 V-0, Contact Finish - Mating: Gold, Shell Material: Brass, Shell Finish: Nickel, Primary Material: Metal.
Інші пропозиції 1553637 за ціною від 2411.48 грн до 2411.48 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||
|---|---|---|---|---|---|---|---|
 |
1553637 | PHOENIX CONTACT |
Category: M12 plugs and sockets Description: Connector: M12; plug; PIN: 4; 48V; angled; IP67; IDC; Contacts: CuSn Type of connector: M12 Connector: plug Number of pins: 4 Rated voltage: 48V Spatial orientation: angled IP rating: IP67 Electrical mounting: IDC Contact plating: gold-plated; nickel plated Polarisation: D code Current rating: 1.75A Wire cross-section: 0.14...0.34mm2 Connector variant: shielded Wire size: 26AWG...22AWG Contact material: CuSn |
на замовлення 1 шт: термін постачання 14-30 дні (днів) |
|
| 1553637 |
|
Виробник: PHOENIX CONTACT
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; 48V; angled; IP67; IDC; Contacts: CuSn
Type of connector: M12
Connector: plug
Number of pins: 4
Rated voltage: 48V
Spatial orientation: angled
IP rating: IP67
Electrical mounting: IDC
Contact plating: gold-plated; nickel plated
Polarisation: D code
Current rating: 1.75A
Wire cross-section: 0.14...0.34mm2
Connector variant: shielded
Wire size: 26AWG...22AWG
Contact material: CuSn
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; 48V; angled; IP67; IDC; Contacts: CuSn
Type of connector: M12
Connector: plug
Number of pins: 4
Rated voltage: 48V
Spatial orientation: angled
IP rating: IP67
Electrical mounting: IDC
Contact plating: gold-plated; nickel plated
Polarisation: D code
Current rating: 1.75A
Wire cross-section: 0.14...0.34mm2
Connector variant: shielded
Wire size: 26AWG...22AWG
Contact material: CuSn
на замовлення 1 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 2411.48 грн |
