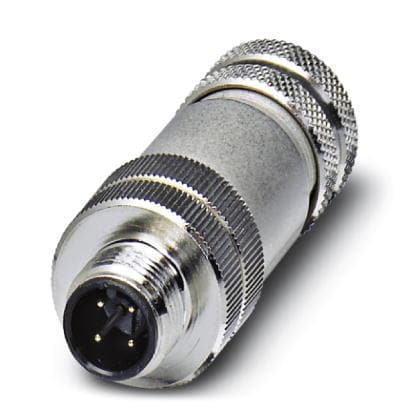

1693830 Phoenix Contact
Виробник: Phoenix Contact
Description: CONN PLUG MALE 4POS GOLD SCREW
Features: Backshell
Packaging: Bulk
Connector Type: Plug, Male Pins
Color: Silver
Voltage Rating: 48VAC, 60VDC
Current Rating (Amps): 4A
Mounting Type: Free Hanging (In-Line)
Shielding: Shielded
Number of Positions: 4
Orientation: A
Shell Size - Insert: M12-4
Operating Temperature: -40°C ~ 85°C
Fastening Type: Threaded
Termination: Screw
Ingress Protection: IP67 - Dust Tight, Waterproof
Cable Opening: 0.157" ~ 0.236" (4.00mm ~ 6.00mm)
Material Flammability Rating: UL94 HB
Contact Finish - Mating: Gold
Part Status: Active
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Primary Material: Metal
Відгуки про товар
Написати відгук
Технічний опис 1693830 Phoenix Contact
Description: CONN PLUG MALE 4POS GOLD SCREW, Features: Backshell, Packaging: Bulk, Connector Type: Plug, Male Pins, Color: Silver, Voltage Rating: 48VAC, 60VDC, Current Rating (Amps): 4A, Mounting Type: Free Hanging (In-Line), Shielding: Shielded, Number of Positions: 4, Orientation: A, Shell Size - Insert: M12-4, Operating Temperature: -40°C ~ 85°C, Fastening Type: Threaded, Termination: Screw, Ingress Protection: IP67 - Dust Tight, Waterproof, Cable Opening: 0.157" ~ 0.236" (4.00mm ~ 6.00mm), Material Flammability Rating: UL94 HB, Contact Finish - Mating: Gold, Part Status: Active, Shell Material: Zinc Die Cast, Shell Finish: Nickel, Primary Material: Metal.
Інші пропозиції 1693830 за ціною від 2023.81 грн до 2903.37 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||
|---|---|---|---|---|---|---|---|
 |
1693830 | PHOENIX CONTACT |
Category: M12 plugs and sockets Description: Connector: M12; plug; PIN: 4; 48V; straight; IP67; screw terminal Type of connector: M12 Connector: plug Number of pins: 4 Rated voltage: 48V Spatial orientation: straight IP rating: IP67 Electrical mounting: screw terminal Contact plating: gold-plated Contact material: CuZn Polarisation: A code Current rating: 4A Wire cross-section: 0.25...0.75mm2 Connector variant: shielded Wire size: 26AWG...20AWG Gasket material: NBR |
на замовлення 1 шт: термін постачання 14-30 дні (днів) |
|
||
 |
1693830 | Phoenix Contact |
Connector, Universal, 4-position For Sensor |
на замовлення 19 шт: термін постачання 21-31 дні (днів) |
|
||
 |
1693830 | Phoenix Contact |
Circular Metric Connectors SACC-M12MS-4CON-PG 7 4P MALE STRT M12 |
на замовлення 37 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. |
| 1693830 |
|
Виробник: PHOENIX CONTACT
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; 48V; straight; IP67; screw terminal
Type of connector: M12
Connector: plug
Number of pins: 4
Rated voltage: 48V
Spatial orientation: straight
IP rating: IP67
Electrical mounting: screw terminal
Contact plating: gold-plated
Contact material: CuZn
Polarisation: A code
Current rating: 4A
Wire cross-section: 0.25...0.75mm2
Connector variant: shielded
Wire size: 26AWG...20AWG
Gasket material: NBR
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; 48V; straight; IP67; screw terminal
Type of connector: M12
Connector: plug
Number of pins: 4
Rated voltage: 48V
Spatial orientation: straight
IP rating: IP67
Electrical mounting: screw terminal
Contact plating: gold-plated
Contact material: CuZn
Polarisation: A code
Current rating: 4A
Wire cross-section: 0.25...0.75mm2
Connector variant: shielded
Wire size: 26AWG...20AWG
Gasket material: NBR
на замовлення 1 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 2023.81 грн |
| 1693830 |
|
Виробник: Phoenix Contact
Connector, Universal, 4-position For Sensor
Connector, Universal, 4-position For Sensor
на замовлення 19 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 5+ | 2903.37 грн |
| 1693830 |
|
Виробник: Phoenix Contact
Circular Metric Connectors SACC-M12MS-4CON-PG 7 4P MALE STRT M12
Circular Metric Connectors SACC-M12MS-4CON-PG 7 4P MALE STRT M12
на замовлення 37 шт:
термін постачання 21-30 дні (днів)
