1714925 PHOENIX CONTACT

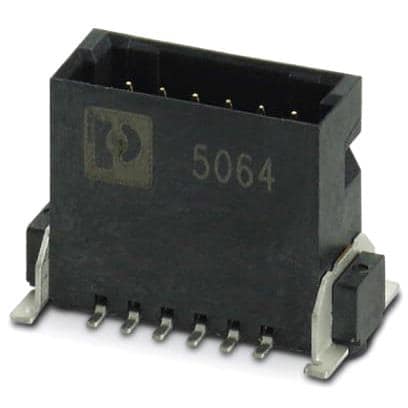

Description: CONN HEADER 1.27MM 16POS SMD, Features: Board Guide, Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 500V, Current Rating (Amps): 1.4A, Mounting Type: Surface Mount, Number of Positions: 16, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Part Status: Obsolete, Contact Shape: Rectangular, Insulation Height: 0.323" (8.20mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.157" (4.00mm).
