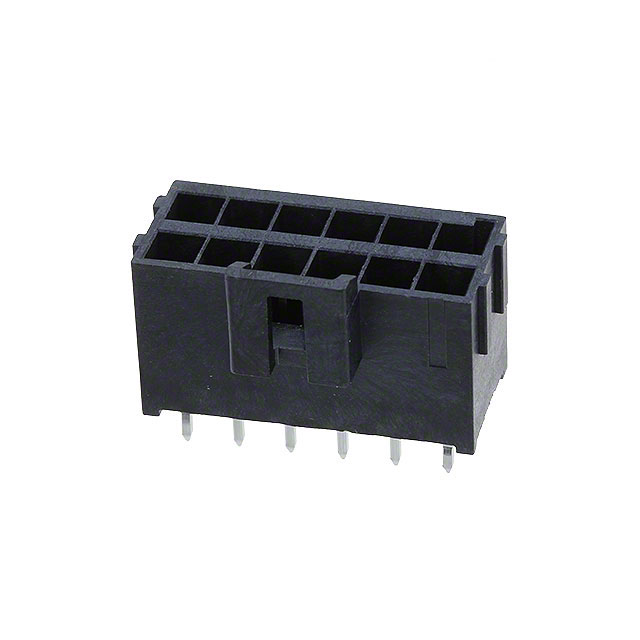

172298-1312 Molex

Description: CONN HEADER VERT 12POS 3.5MM, Features: Board Guide, Packaging: Bulk, Connector Type: Header, Voltage Rating: 400V, Mounting Type: Through Hole, Number of Positions: 12, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 120°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Kinked Pin, Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.138" (3.50mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.126" (3.20mm), Insulation Height: 0.465" (11.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.181" (4.60mm).
