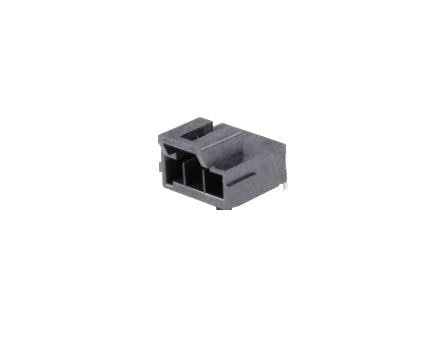

172310-3203 Molex

Description: ULTRAFIT HDR RT 1R BLK NAIL 03 C, Features: Board Guide, Packaging: Bulk, Connector Type: Header, Voltage Rating: 600VAC/DC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Right Angle, Number of Positions: 3, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 120°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.138" (3.50mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.126" (3.20mm), Insulation Height: 0.353" (8.96mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP).
