1723161110 Molex

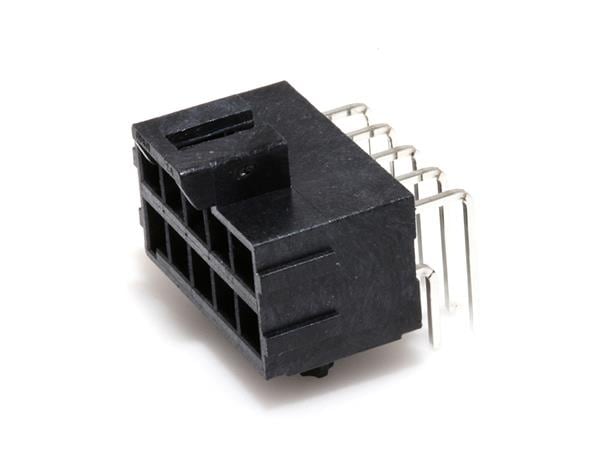

Description: CONN HEADER R/A 10POS 3.5MM, Features: Board Guide, Packaging: Tray, Connector Type: Header, Voltage Rating: 600VAC/DC, Mounting Type: Through Hole, Right Angle, Number of Positions: 10, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.138" (3.50mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 60.0µin (1.52µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.126" (3.20mm), Insulation Height: 0.534" (13.56mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.181" (4.60mm).
