1777749 PHOENIX CONTACT
Виробник: PHOENIX CONTACT
Category: Pluggable terminal blocks

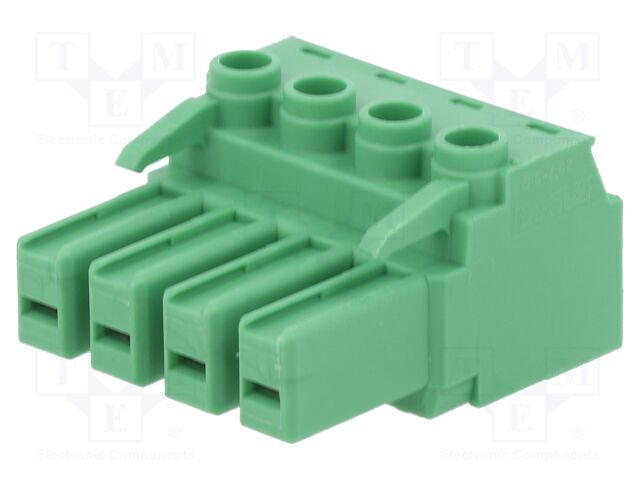

Description: Connector: pluggable terminal block; plug; female; 41A; 1kV; green
Type of connector: pluggable terminal block
Connector: plug
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: cage clamp; screw terminal
Contact plating: tinned
Colour: green
Body material: polyamide
Contacts pitch: 7.62mm
Number of ways: 4
Number of terminals: 4
Wire cross-section: 0.25...6mm2
Current rating: 41A
Wire size: 24AWG...10AWG
Connector pinout layout: 1x4
Rated voltage: 1kV
Conform to the norm: CSA; UL; VDE
Locking system: friction lock
Kind of connector: female
Flammability rating: UL94V-0
Відгуки про товар
Написати відгук
Технічний опис 1777749 PHOENIX CONTACT
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 41A; 1kV; green, Type of connector: pluggable terminal block, Connector: plug, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: cage clamp; screw terminal, Contact plating: tinned, Colour: green, Body material: polyamide, Contacts pitch: 7.62mm, Number of ways: 4, Number of terminals: 4, Wire cross-section: 0.25...6mm2, Current rating: 41A, Wire size: 24AWG...10AWG, Connector pinout layout: 1x4, Rated voltage: 1kV, Conform to the norm: CSA; UL; VDE, Locking system: friction lock, Kind of connector: female, Flammability rating: UL94V-0.
Інші пропозиції 1777749 за ціною від 398.96 грн до 677.79 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||
|---|---|---|---|---|---|---|---|---|---|
 |
1777749 | Phoenix Contact |
Description: TERM BLOCK PLUG 4POS 7.62MM Packaging: Bulk Features: Retention Latches (Non-Wire Side) Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 4 Pitch: 0.300" (7.62mm) Type: Plug, Female Sockets Termination Style: Screw - Rising Cage Clamp Current - IEC: 41A Number of Levels: 1 Wire Gauge or Range - AWG: 8-24 AWG Wire Gauge or Range - mm²: 0.2-10mm² Positions Per Level: 4 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 41 A Voltage - IEC: 1 kV Voltage - UL: 600 V |
на замовлення 2155 шт: термін постачання 21-31 дні (днів) |
|
||||
 |
1777749 | Phoenix Contact |
Pluggable Terminal Blocks 4 Pos 7.62mm pitch Plug 24-8 AWG Screw |
на замовлення 447 шт: термін постачання 21-30 дні (днів) |
|
||||
 |
1777749 | PHOENIX CONTACT |
Description: PHOENIX CONTACT - 1777749 - Steckbare Reihenklemme, 7.62 mm, 4 -polig, 24 AWG, 8 AWG, 6 mm², Schraubanschluss tariffCode: 85366990 euEccn: NLR rohsCompliant: YES Nennspannung: 1kV hazardous: false rohsPhthalatesCompliant: YES Nennstrom: 41A isCanonical: Y Drahtanschlussverfahren: Schraubanschluss Anzahl der Positionen: 4-polig Leiterstärke (AWG), max.: 8AWG Leiterquerschnitt CSA: 6mm² SVHC: No SVHC (04-Feb-2026) Leiterstärke (AWG): 24AWG bis 8AWG Leiterstärke (AWG), min.: 24AWG Produktpalette: PC productTraceability: No usEccn: EAR99 Rastermaß: 7.62mm |
на замовлення 56 шт: термін постачання 21-31 дні (днів) |
|
| 1777749 |
|
Виробник: Phoenix Contact
Description: TERM BLOCK PLUG 4POS 7.62MM
Packaging: Bulk
Features: Retention Latches (Non-Wire Side)
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 4
Pitch: 0.300" (7.62mm)
Type: Plug, Female Sockets
Termination Style: Screw - Rising Cage Clamp
Current - IEC: 41A
Number of Levels: 1
Wire Gauge or Range - AWG: 8-24 AWG
Wire Gauge or Range - mm²: 0.2-10mm²
Positions Per Level: 4
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 41 A
Voltage - IEC: 1 kV
Voltage - UL: 600 V
Description: TERM BLOCK PLUG 4POS 7.62MM
Packaging: Bulk
Features: Retention Latches (Non-Wire Side)
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 4
Pitch: 0.300" (7.62mm)
Type: Plug, Female Sockets
Termination Style: Screw - Rising Cage Clamp
Current - IEC: 41A
Number of Levels: 1
Wire Gauge or Range - AWG: 8-24 AWG
Wire Gauge or Range - mm²: 0.2-10mm²
Positions Per Level: 4
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 41 A
Voltage - IEC: 1 kV
Voltage - UL: 600 V
на замовлення 2155 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 597.03 грн |
| 10+ | 398.96 грн |
| 1777749 |
|
Виробник: Phoenix Contact
Pluggable Terminal Blocks 4 Pos 7.62mm pitch Plug 24-8 AWG Screw
Pluggable Terminal Blocks 4 Pos 7.62mm pitch Plug 24-8 AWG Screw
на замовлення 447 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 607.73 грн |
| 1777749 |
|
Виробник: PHOENIX CONTACT
Description: PHOENIX CONTACT - 1777749 - Steckbare Reihenklemme, 7.62 mm, 4 -polig, 24 AWG, 8 AWG, 6 mm², Schraubanschluss
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Nennspannung: 1kV
hazardous: false
rohsPhthalatesCompliant: YES
Nennstrom: 41A
isCanonical: Y
Drahtanschlussverfahren: Schraubanschluss
Anzahl der Positionen: 4-polig
Leiterstärke (AWG), max.: 8AWG
Leiterquerschnitt CSA: 6mm²
SVHC: No SVHC (04-Feb-2026)
Leiterstärke (AWG): 24AWG bis 8AWG
Leiterstärke (AWG), min.: 24AWG
Produktpalette: PC
productTraceability: No
usEccn: EAR99
Rastermaß: 7.62mm
Description: PHOENIX CONTACT - 1777749 - Steckbare Reihenklemme, 7.62 mm, 4 -polig, 24 AWG, 8 AWG, 6 mm², Schraubanschluss
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Nennspannung: 1kV
hazardous: false
rohsPhthalatesCompliant: YES
Nennstrom: 41A
isCanonical: Y
Drahtanschlussverfahren: Schraubanschluss
Anzahl der Positionen: 4-polig
Leiterstärke (AWG), max.: 8AWG
Leiterquerschnitt CSA: 6mm²
SVHC: No SVHC (04-Feb-2026)
Leiterstärke (AWG): 24AWG bis 8AWG
Leiterstärke (AWG), min.: 24AWG
Produktpalette: PC
productTraceability: No
usEccn: EAR99
Rastermaß: 7.62mm
на замовлення 56 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 677.79 грн |
| 10+ | 593.07 грн |
