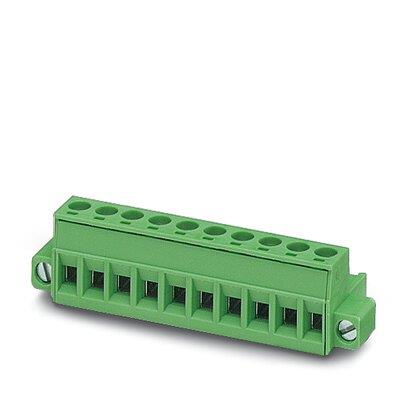

1778043 PHOENIX CONTACT
Виробник: PHOENIX CONTACT
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; MSTB; 12A; 250V
Electrical mounting: cage clamp; screw terminal
Conform to the norm: CSA; UL; VDE
Manufacturer series: MSTB
Kind of connector: female
Mechanical mounting: for cable
Contact plating: tinned
Colour: green
Connector: plug
Body material: polyamide
Locking system: screws
Flammability rating: UL94V-0
Wire cross-section: 0.2...2.5mm2
Contacts pitch: 5.08mm
Number of ways: 8
Number of terminals: 8
Current rating: 12A
Wire size: 24AWG...12AWG
Rated voltage: 0.25kV
Connector pinout layout: 1x8
Spatial orientation: straight
Type of connector: pluggable terminal block
Відгуки про товар
Написати відгук
Технічний опис 1778043 PHOENIX CONTACT
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; MSTB; 12A; 250V, Electrical mounting: cage clamp; screw terminal, Conform to the norm: CSA; UL; VDE, Manufacturer series: MSTB, Kind of connector: female, Mechanical mounting: for cable, Contact plating: tinned, Colour: green, Connector: plug, Body material: polyamide, Locking system: screws, Flammability rating: UL94V-0, Wire cross-section: 0.2...2.5mm2, Contacts pitch: 5.08mm, Number of ways: 8, Number of terminals: 8, Current rating: 12A, Wire size: 24AWG...12AWG, Rated voltage: 0.25kV, Connector pinout layout: 1x8, Spatial orientation: straight, Type of connector: pluggable terminal block.
Інші пропозиції 1778043 за ціною від 445.06 грн до 683.93 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1778043 | Виробник : Phoenix Contact |
Description: TERM BLOCK PLUG 8POS STR 5.08MM Features: Mating Flange Packaging: Bulk Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 8 Pitch: 0.200" (5.08mm) Type: Plug, Female Sockets Termination Style: Screw - Rising Cage Clamp Current - IEC: 12A Number of Levels: 1 Wire Gauge or Range - AWG: 12-30 AWG Wire Gauge or Range - mm²: 0.2-2.5mm² Positions Per Level: 8 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 15 A Voltage - IEC: 630 V Voltage - UL: 300 V |
на замовлення 1225 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
1778043 | Виробник : Phoenix Contact |
Pluggable Terminal Blocks 8 Pos 5.08mm pitch Plug 24-12 AWG Screw |
на замовлення 925 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||
 |
1778043 | Виробник : PHOENIX CONTACT |
Description: PHOENIX CONTACT - 1778043 - Steckbare Reihenklemme, 5.08 mm, 8 -polig, 24 AWG, 12 AWG, 2.5 mm², Schraubanschluss tariffCode: 85366990 rohsCompliant: YES Nennspannung: 320V hazardous: false rohsPhthalatesCompliant: YES Nennstrom: 12A isCanonical: Y usEccn: EAR99 Drahtanschlussverfahren: Schraubanschluss Anzahl der Positionen: 8-polig Leiterstärke (AWG), max.: 12AWG Leiterquerschnitt CSA: 2.5mm² euEccn: NLR Leiterstärke (AWG): 24AWG bis 12AWG Leiterstärke (AWG), min.: 24AWG Produktpalette: MSTB productTraceability: No Rastermaß: 5.08mm SVHC: No SVHC (04-Feb-2026) |
на замовлення 188 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
| 1778043 | Виробник : Loctite |
Chemicals Conductive Dry Film Product, 25 Per Roll, LOCTITE Ablestik CDF 815P8B8 Series |
товару немає в наявності |
