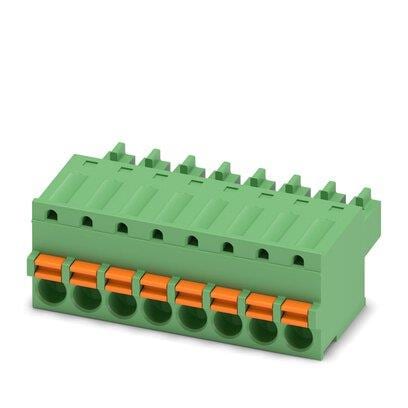

1851106 PHOENIX CONTACT
Виробник: PHOENIX CONTACT
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 8A; 160V; green
Conform to the norm: CSA; UL; VDE
Locking system: friction lock
Kind of connector: female
Type of connector: pluggable terminal block
Mechanical mounting: for cable
Contact plating: tinned
Electrical mounting: spring clamp
Connector: plug
Body material: polyamide
Connector variant: with push button
Flammability rating: UL94V-0
Wire cross-section: 0.14...1.5mm2
Contacts pitch: 3.81mm
Current rating: 8A
Number of terminals: 8
Number of ways: 8
Wire size: 28AWG...16AWG
Rated voltage: 0.16kV
Connector pinout layout: 1x8
Spatial orientation: straight
Colour: green
Відгуки про товар
Написати відгук
Технічний опис 1851106 PHOENIX CONTACT
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 8A; 160V; green, Conform to the norm: CSA; UL; VDE, Locking system: friction lock, Kind of connector: female, Type of connector: pluggable terminal block, Mechanical mounting: for cable, Contact plating: tinned, Electrical mounting: spring clamp, Connector: plug, Body material: polyamide, Connector variant: with push button, Flammability rating: UL94V-0, Wire cross-section: 0.14...1.5mm2, Contacts pitch: 3.81mm, Current rating: 8A, Number of terminals: 8, Number of ways: 8, Wire size: 28AWG...16AWG, Rated voltage: 0.16kV, Connector pinout layout: 1x8, Spatial orientation: straight, Colour: green.
Інші пропозиції 1851106 за ціною від 830.83 грн до 1048.43 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||
|---|---|---|---|---|---|---|---|---|---|
 |
1851106 | Phoenix Contact |
Description: TERM BLOCK PLUG 8POS 3.81MM Packaging: Bulk Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 8 Pitch: 0.150" (3.81mm) Type: Plug, Female Sockets Termination Style: Screwless - Leg Spring, Push-In Spring Current - IEC: 8A Number of Levels: 1 Wire Gauge or Range - AWG: 16-28 AWG Wire Gauge or Range - mm²: 0.14-1.5mm² Positions Per Level: 8 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 8 A Voltage - IEC: 320 V Voltage - UL: 300 V |
на замовлення 156 шт: термін постачання 21-31 дні (днів) |
|
||||
 |
1851106 | Phoenix Contact |
Pluggable Terminal Blocks 8 Pos 3.81mm pitch Plug 26-16AWG Spring |
на замовлення 102 шт: термін постачання 21-30 дні (днів) |
|
||||
 |
1851106 | PHOENIX CONTACT |
Description: PHOENIX CONTACT - 1851106 - Steckbare Reihenklemme, 3.81 mm, 8 -polig, 26 AWG, 16 AWG, 1.5 mm², Steckanschluss tariffCode: 85366990 euEccn: NLR rohsCompliant: YES Nennspannung: 160V hazardous: false rohsPhthalatesCompliant: YES Nennstrom: 8A isCanonical: Y Drahtanschlussverfahren: Steckanschluss Anzahl der Positionen: 8-polig Leiterstärke (AWG), max.: 16AWG Leiterquerschnitt CSA: 1.5mm² SVHC: No SVHC (04-Feb-2026) Leiterstärke (AWG): 26AWG bis 16AWG Leiterstärke (AWG), min.: 26AWG Produktpalette: FK-MCP productTraceability: No usEccn: EAR99 Rastermaß: 3.81mm |
на замовлення 15 шт: термін постачання 21-31 дні (днів) |
|
| 1851106 |
|
Виробник: Phoenix Contact
Description: TERM BLOCK PLUG 8POS 3.81MM
Packaging: Bulk
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 8
Pitch: 0.150" (3.81mm)
Type: Plug, Female Sockets
Termination Style: Screwless - Leg Spring, Push-In Spring
Current - IEC: 8A
Number of Levels: 1
Wire Gauge or Range - AWG: 16-28 AWG
Wire Gauge or Range - mm²: 0.14-1.5mm²
Positions Per Level: 8
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 8 A
Voltage - IEC: 320 V
Voltage - UL: 300 V
Description: TERM BLOCK PLUG 8POS 3.81MM
Packaging: Bulk
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 8
Pitch: 0.150" (3.81mm)
Type: Plug, Female Sockets
Termination Style: Screwless - Leg Spring, Push-In Spring
Current - IEC: 8A
Number of Levels: 1
Wire Gauge or Range - AWG: 16-28 AWG
Wire Gauge or Range - mm²: 0.14-1.5mm²
Positions Per Level: 8
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 8 A
Voltage - IEC: 320 V
Voltage - UL: 300 V
на замовлення 156 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1024.46 грн |
| 10+ | 830.83 грн |
| 1851106 |
|
Виробник: Phoenix Contact
Pluggable Terminal Blocks 8 Pos 3.81mm pitch Plug 26-16AWG Spring
Pluggable Terminal Blocks 8 Pos 3.81mm pitch Plug 26-16AWG Spring
на замовлення 102 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1044.32 грн |
| 1851106 |
|
Виробник: PHOENIX CONTACT
Description: PHOENIX CONTACT - 1851106 - Steckbare Reihenklemme, 3.81 mm, 8 -polig, 26 AWG, 16 AWG, 1.5 mm², Steckanschluss
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Nennspannung: 160V
hazardous: false
rohsPhthalatesCompliant: YES
Nennstrom: 8A
isCanonical: Y
Drahtanschlussverfahren: Steckanschluss
Anzahl der Positionen: 8-polig
Leiterstärke (AWG), max.: 16AWG
Leiterquerschnitt CSA: 1.5mm²
SVHC: No SVHC (04-Feb-2026)
Leiterstärke (AWG): 26AWG bis 16AWG
Leiterstärke (AWG), min.: 26AWG
Produktpalette: FK-MCP
productTraceability: No
usEccn: EAR99
Rastermaß: 3.81mm
Description: PHOENIX CONTACT - 1851106 - Steckbare Reihenklemme, 3.81 mm, 8 -polig, 26 AWG, 16 AWG, 1.5 mm², Steckanschluss
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Nennspannung: 160V
hazardous: false
rohsPhthalatesCompliant: YES
Nennstrom: 8A
isCanonical: Y
Drahtanschlussverfahren: Steckanschluss
Anzahl der Positionen: 8-polig
Leiterstärke (AWG), max.: 16AWG
Leiterquerschnitt CSA: 1.5mm²
SVHC: No SVHC (04-Feb-2026)
Leiterstärke (AWG): 26AWG bis 16AWG
Leiterstärke (AWG), min.: 26AWG
Produktpalette: FK-MCP
productTraceability: No
usEccn: EAR99
Rastermaß: 3.81mm
на замовлення 15 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1048.43 грн |
| 10+ | 1031.98 грн |
