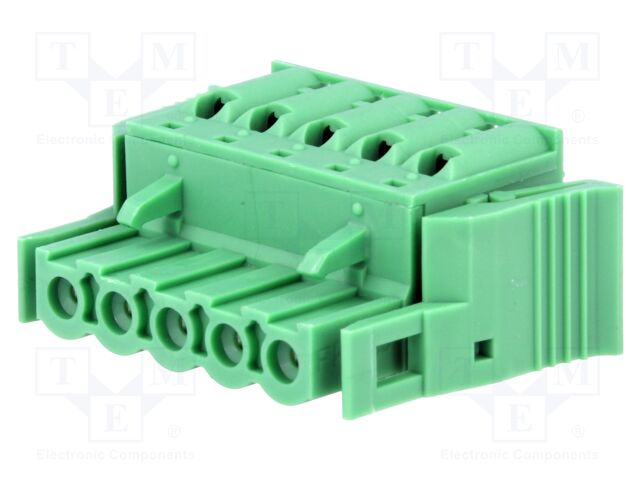

1925728 PHOENIX CONTACT
Виробник: PHOENIX CONTACT
Category: Pluggable terminal blocks
Description: Pluggable terminal block; Contacts ph: 5.08mm; ways: 5; straight
Conform to the norm: CSA; UL; VDE
Connector variant: with push button
Colour: green
Kind of connector: female
Operating temperature: -40...105°C
Current rating: 12A
Connector pinout layout: 1x5
Contacts pitch: 5.08mm
Wire cross-section: 0.2...2.5mm2
Wire size: 24AWG...12AWG
Locking system: latch
Electrical mounting: spring clamp
Mechanical mounting: for cable
Number of ways: 5
Stripped wire length: 10mm
Number of terminals: 5
Spatial orientation: straight
Type of connector: pluggable terminal block
Connector: plug
Contact plating: tinned
Rated voltage: 0.25kV
Flammability rating: UL94V-0
Body material: polyamide
Category: Pluggable terminal blocks
Description: Pluggable terminal block; Contacts ph: 5.08mm; ways: 5; straight
Conform to the norm: CSA; UL; VDE
Connector variant: with push button
Colour: green
Kind of connector: female
Operating temperature: -40...105°C
Current rating: 12A
Connector pinout layout: 1x5
Contacts pitch: 5.08mm
Wire cross-section: 0.2...2.5mm2
Wire size: 24AWG...12AWG
Locking system: latch
Electrical mounting: spring clamp
Mechanical mounting: for cable
Number of ways: 5
Stripped wire length: 10mm
Number of terminals: 5
Spatial orientation: straight
Type of connector: pluggable terminal block
Connector: plug
Contact plating: tinned
Rated voltage: 0.25kV
Flammability rating: UL94V-0
Body material: polyamide
на замовлення 118 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
2+ | 315.36 грн |
3+ | 264.91 грн |
5+ | 212.08 грн |
12+ | 200.76 грн |
Відгуки про товар
Написати відгук
Технічний опис 1925728 PHOENIX CONTACT
Category: Pluggable terminal blocks, Description: Pluggable terminal block; Contacts ph: 5.08mm; ways: 5; straight, Conform to the norm: CSA; UL; VDE, Connector variant: with push button, Colour: green, Kind of connector: female, Operating temperature: -40...105°C, Current rating: 12A, Connector pinout layout: 1x5, Contacts pitch: 5.08mm, Wire cross-section: 0.2...2.5mm2, Wire size: 24AWG...12AWG, Locking system: latch, Electrical mounting: spring clamp, Mechanical mounting: for cable, Number of ways: 5, Stripped wire length: 10mm, Number of terminals: 5, Spatial orientation: straight, Type of connector: pluggable terminal block, Connector: plug, Contact plating: tinned, Rated voltage: 0.25kV, Flammability rating: UL94V-0, Body material: polyamide.
Інші пропозиції 1925728 за ціною від 486.86 грн до 590.86 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1925728 | Виробник : Phoenix Contact | Conn Spring Cage F 5 POS 5.08mm ST Panel Mount 12A |
на замовлення 6 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
1925728 | Виробник : Phoenix Contact |
Description: TERM BLOCK PLUG 5POS STR 5.08MM Packaging: Bulk Features: Latch Lock, Retention Latches (Non-Wire Side) Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 5 Pitch: 0.200" (5.08mm) Type: Plug, Female Sockets Termination Style: Screwless - Push-In Spring Current - IEC: 12A Number of Levels: 1 Wire Gauge or Range - AWG: 12-26 AWG Wire Gauge or Range - mm²: 0.2-2.5mm² Positions Per Level: 5 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 10 A Voltage - IEC: 630 V Voltage - UL: 300 V |
на замовлення 91 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
1925728 | Виробник : Phoenix Contact | Pluggable Terminal Blocks 5 Pos 5.08mm pitch Plug 24-12AWG Spring |
на замовлення 93 шт: термін постачання 21-30 дні (днів) |
|
|||||||||||
1925728 | Виробник : Phoenix Contact | Conn Spring Cage F 5 POS 5.08mm ST Panel Mount 12A |
на замовлення 6 шт: термін постачання 21-31 дні (днів) |
