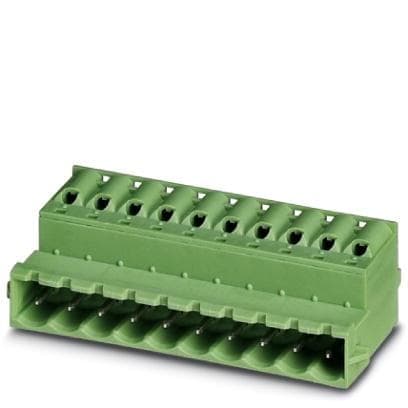

1926002 PHOENIX CONTACT
Виробник: PHOENIX CONTACTCategory: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; male; 12A; 250V; tinned
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: male
Current rating: 12A
Rated voltage: 250V
Spatial orientation: straight
Connector variant: with push button
Mechanical mounting: for cable
Electrical mounting: spring clamp
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Wire size: 24AWG...12AWG
Connector pinout layout: 1x16
Wire cross-section: 0.2...2.5mm2
Contacts pitch: 5.08mm
Number of ways: 16
Locking system: latch
Conform to the norm: CSA; UL; VDE
Number of terminals: 16
на замовлення 21 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1005.20 грн |
| 2+ | 672.08 грн |
| 4+ | 636.06 грн |
| 10+ | 635.29 грн |
Відгуки про товар
Написати відгук
Технічний опис 1926002 PHOENIX CONTACT
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; male; 12A; 250V; tinned, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: male, Current rating: 12A, Rated voltage: 250V, Spatial orientation: straight, Connector variant: with push button, Mechanical mounting: for cable, Electrical mounting: spring clamp, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: polyamide, Wire size: 24AWG...12AWG, Connector pinout layout: 1x16, Wire cross-section: 0.2...2.5mm2, Contacts pitch: 5.08mm, Number of ways: 16, Locking system: latch, Conform to the norm: CSA; UL; VDE, Number of terminals: 16, кількість в упаковці: 1 шт.
Інші пропозиції 1926002 за ціною від 762.35 грн до 1206.24 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1926002 | Виробник : PHOENIX CONTACT |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; male; 12A; 250V; tinned Type of connector: pluggable terminal block Connector: plug Kind of connector: male Current rating: 12A Rated voltage: 250V Spatial orientation: straight Connector variant: with push button Mechanical mounting: for cable Electrical mounting: spring clamp Contact plating: tinned Colour: green Flammability rating: UL94V-0 Body material: polyamide Wire size: 24AWG...12AWG Connector pinout layout: 1x16 Wire cross-section: 0.2...2.5mm2 Contacts pitch: 5.08mm Number of ways: 16 Locking system: latch Conform to the norm: CSA; UL; VDE Number of terminals: 16 кількість в упаковці: 1 шт |
на замовлення 21 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
| 1926002 | Виробник : Phoenix Contact |
Description: TERM BLOCK PLUG 16POS STR 5.08MM Features: Locking Ramp Packaging: Bulk Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 16 Pitch: 0.200" (5.08mm) Type: Plug, Male Pins Termination Style: Screwless - Push-In Spring Current - IEC: 12A Number of Levels: 1 Wire Gauge or Range - AWG: 12-26 AWG Wire Gauge or Range - mm²: 0.2-2.5mm² Positions Per Level: 16 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 10 A Voltage - IEC: 630 V Voltage - UL: 300 V |
товару немає в наявності |
||||||||||||
 |
1926002 | Виробник : Phoenix Contact |
Pluggable Terminal Blocks 16 Pos 5.08mm Invert Plug 24-12AWG Sprin |
товару немає в наявності |
