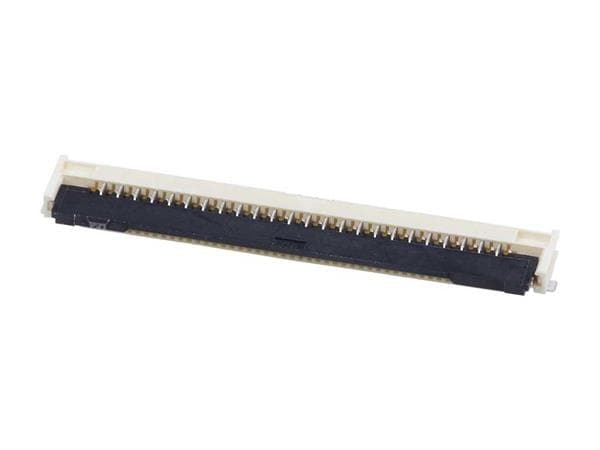

200528-0240 Molex

Description: 1.0 FPC ZIF BTM CONT EMBT PKG 24, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Bulk, Contact Finish: Gold, Voltage Rating: 125V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 24, Pitch: 0.039" (1.00mm), Operating Temperature: -40°C ~ 105°C, Termination: Solder, Height Above Board: 0.075" (1.90mm), Locking Feature: Flip Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyamide (PA), Nylon, Glass Filled, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Cable End Type: Tabbed, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Bottom.
