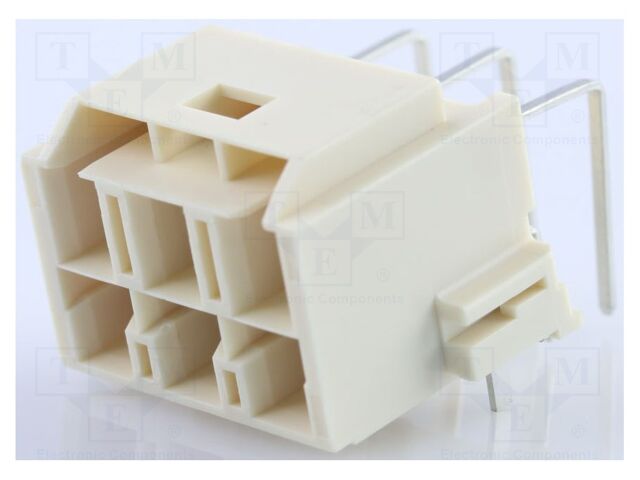

2035551216 Molex

Description: CONN HEADER R/A 6POS 6.5MM, Features: Board Guide, Solder Retention, Packaging: Tube, Connector Type: Header, Voltage Rating: 600VAC/DC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Right Angle, Number of Positions: 6, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Tab, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.256" (6.50mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Contact Shape: Rectangular, Contact Length - Post: 0.150" (3.81mm), Insulation Height: 0.598" (15.19mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.256" (6.50mm).
