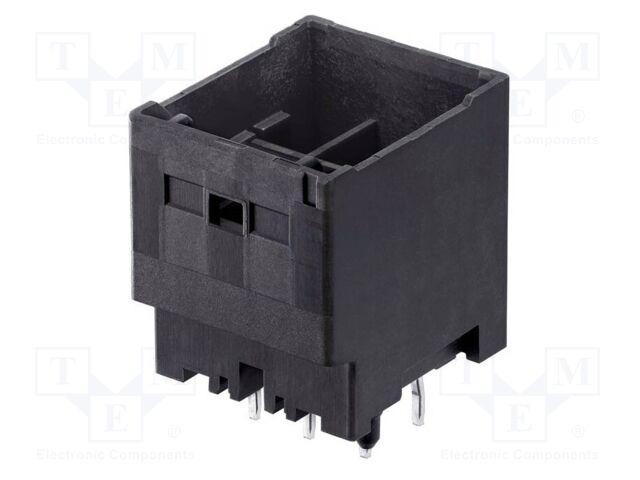

212210-0041 MOLEX
Виробник: MOLEX
Category: Automotive connectors
Description: Connector: wire-board; plug; Inom: 8.5A; 500V; PIN: 4; vertical; THT
Contact material: copper alloy
Mechanical mounting: on PCBs
Connector variant: Glow-Wire
Locking system: latch
Connector: plug
Body material: polyamide
Spatial orientation: vertical
Electrical mounting: THT
Contact plating: tinned
Flammability rating: UL94V-0
Type of connector: wire-board
Operating temperature: -40...105°C
Contacts pitch: 3.3mm
Current rating: 8.5A
Number of pins: 4
Maximum current: 8.5A
Rated voltage: 0.5kV
Body colour: black
| Кількість | Ціна без ПДВ |
|---|---|
| 100+ | 66.97 грн |
| 1120+ | 54.72 грн |
| 2100+ | 53.89 грн |
| 2240+ | 53.06 грн |
Відгуки про товар
Написати відгук
Технічний опис 212210-0041 MOLEX
Description: CP-3.3 W/B HDR ASSY DR ST DIP BL, Features: Board Guide, Glow Wire Compliant, Packaging: Tray, Connector Type: Header, Voltage Rating: 500VAC/DC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 4, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Kinked Pin, Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.130" (3.30mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.132" (3.35mm), Insulation Height: 0.549" (13.94mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Glass Filled, Row Spacing - Mating: 0.163" (4.14mm).
Інші пропозиції 212210-0041 за ціною від 60.52 грн до 110.04 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2122100041 | Molex |
 Description: CP-3.3 W/B HDR ASSY DR ST DIP BLFeatures: Board Guide, Glow Wire Compliant Packaging: Tray Connector Type: Header Voltage Rating: 500VAC/DC Current Rating (Amps): Varies by Wire Gauge Mounting Type: Through Hole Number of Positions: 4 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin Fastening Type: Latch Holder Number of Positions Loaded: All Termination: Kinked Pin, Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.130" (3.30mm) Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 39.4µin (1.00µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.132" (3.35mm) Insulation Height: 0.549" (13.94mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA), Nylon, Glass Filled Row Spacing - Mating: 0.163" (4.14mm) |
на замовлення 4141 шт: термін постачання 21-31 дні (днів) |
|
||||||||||
 |
212210-0041 | Molex | Headers & Wire Housings CP3.3 Hdr 3.30mm DR Vrt PsLk GW 4Ckt Blk |
на замовлення 4375 шт: термін постачання 21-30 дні (днів) |
В кошику од. на суму грн. | ||||||||||
 |
212210-0041 | MOLEX |
Description: MOLEX - 212210-0041 - Stiftleiste, schwarz, Stromversorgung, Wire-to-Board, 3.3 mm, 2 Reihe(n), 4 Kontakt(e) tariffCode: 85366930 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Kupferlegierung isCanonical: Y Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 4Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Stromversorgung, Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: CP-3.3 212210 productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 3.3mm |
на замовлення 2070 шт: термін постачання 21-31 дні (днів) |
Мінімальне замовлення: 10 шт В кошику од. на суму грн. |
| 2122100041 |
|
Виробник: Molex
Description: CP-3.3 W/B HDR ASSY DR ST DIP BL
Features: Board Guide, Glow Wire Compliant
Packaging: Tray
Connector Type: Header
Voltage Rating: 500VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Kinked Pin, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.130" (3.30mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 39.4µin (1.00µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.132" (3.35mm)
Insulation Height: 0.549" (13.94mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon, Glass Filled
Row Spacing - Mating: 0.163" (4.14mm)
Description: CP-3.3 W/B HDR ASSY DR ST DIP BL
Features: Board Guide, Glow Wire Compliant
Packaging: Tray
Connector Type: Header
Voltage Rating: 500VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Kinked Pin, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.130" (3.30mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 39.4µin (1.00µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.132" (3.35mm)
Insulation Height: 0.549" (13.94mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon, Glass Filled
Row Spacing - Mating: 0.163" (4.14mm)
на замовлення 4141 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 110.04 грн |
| 10+ | 89.99 грн |
| 140+ | 74.68 грн |
| 560+ | 63.55 грн |
| 1120+ | 60.52 грн |
| 212210-0041 |
Виробник: Molex
Headers & Wire Housings CP3.3 Hdr 3.30mm DR Vrt PsLk GW 4Ckt Blk
Headers & Wire Housings CP3.3 Hdr 3.30mm DR Vrt PsLk GW 4Ckt Blk
на замовлення 4375 шт:
термін постачання 21-30 дні (днів)
| 212210-0041 |
|
Виробник: MOLEX
Description: MOLEX - 212210-0041 - Stiftleiste, schwarz, Stromversorgung, Wire-to-Board, 3.3 mm, 2 Reihe(n), 4 Kontakt(e)
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 4Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Stromversorgung, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: CP-3.3 212210
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 3.3mm
Description: MOLEX - 212210-0041 - Stiftleiste, schwarz, Stromversorgung, Wire-to-Board, 3.3 mm, 2 Reihe(n), 4 Kontakt(e)
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 4Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Stromversorgung, Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: CP-3.3 212210
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 3.3mm
на замовлення 2070 шт:
термін постачання 21-31 дні (днів)
