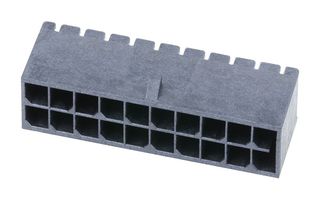

2125282001 Molex

Description: R/A HDR 15 GOLD 2X10CKT, Row Spacing - Mating: 0.118" (3.00mm), Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.291" (7.40mm), Contact Length - Post: 0.125" (3.18mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.118" (3.00mm), Insulation Color: Black, Contact Material: Copper Alloy, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Locking Ramp, Contact Type: Male Pin, Operating Temperature: -40°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 20, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): Varies by Wire Gauge, Voltage Rating: 600VAC/DC, Connector Type: Header, Features: Board Lock, Packaging: Tray.
