2170298 LAPP

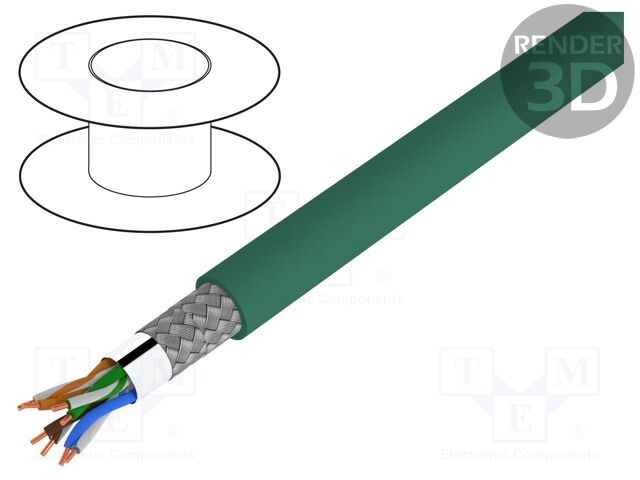

Category: Industrial Ethernet Cables, Description: Wire; ETHERLINE® Cat.5e; SF/UTP; 4x2x24AWG; 5e; wire; Cu; LSZH, Type of wire: data transmission, Kind of wire: SF/UTP, Cable structure: 4x2x24AWG, Cable application: automatics; EtherCAT; EtherNet/IP; industrial applications; industrial Ethernet, Ethernet category: Cat 5e, Core structure: wire, Kind of core: Cu, Number of cores: 8, No. of pairs: 4, Core diameter: 24AWG, Shield structure: Al foil; shielded twofold; tinned copper braid, Wire insulation material: LSZH, Insulation colour: turquoise, Operating temperature: -30...80°C, Cable external diameter: 6.3mm, CPR standard: no classification, Cable features: twisted pair conductors, Kind of material: halogen free; no flame propagation, Conform to the norm: IEC 60332-1-2, Information: The UL Label and Mark on full factory packaging only, Rated voltage: 0.125kV, Manufacturer series: ETHERLINE® Cat.5e, Resistance to: mechanical stesses; moisture; to weather conditions.
