2170909 LAPP
Виробник: LAPP

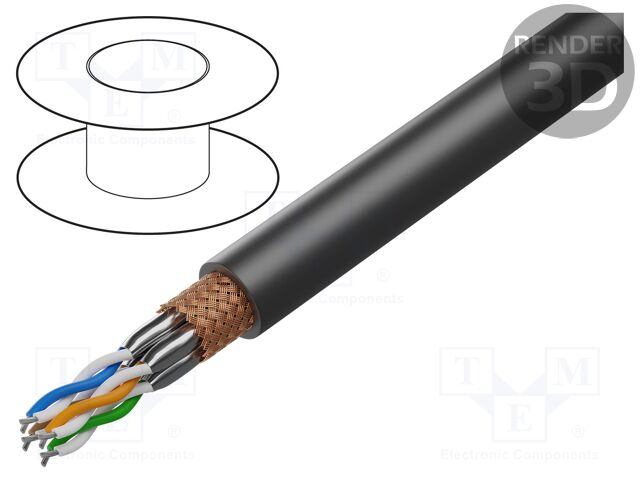

Description: ETHERLINE TRAIN FLEX CAT.7 4X2X2
Jacket Color: Black
Conductor Material: Copper, Tinned
Shield Type: Foil, Braid
Conductor Insulation: Polyolefin (PO)
Jacket (Insulation) Diameter: 0.331" (8.41mm)
Cable Type: Multi-Pair
Number of Conductors: 8 (4 Pair Twisted)
Operating Temperature: -45°C ~ 90°C
Jacket (Insulation) Material: Polymer
Wire Gauge: 24 AWG
Packaging: Spool
Відгуки про товар
Написати відгук
Технічний опис 2170909 LAPP
Category: Industrial Ethernet Cables, Description: Wire; S/FTP; ETHERLINE® TRAIN; 4x2x24AWG; Cat 7; stranded; Cu, Type of wire: data transmission, Manufacturer series: ETHERLINE® TRAIN, Cable structure: 4x2x24AWG, Shield structure: braid made of copper wires; pairs shielded with Al-PET foil; shielded twofold, Rated voltage: 0.125kV, Wire insulation material: crosslinked copolymer, Kind of core: Cu; tinned, Core structure: stranded, Number of cores: 8, Insulation colour: black, Cable external diameter: 8.4mm, Kind of material: halogen free; no flame propagation, Operating temperature: -45...90°C, Resistance to: flame; most of alkalis; most of chemical compounds; most of oils; ozone; UV rays, CPR standard: no classification, Cable application: EtherCAT; EtherNet/IP; industrial Ethernet; railway industry, Cable features: twisted pair conductors, No. of pairs: 4, Conform to the norm: EN 45545-2; EN 50264-1; EN 50264-3-2; EN 50525-1; IEC 60332-1-2; IEC 60332-3-25; IEC 61034-2, Core diameter: 24AWG, Ethernet category: Cat 7, Kind of cable: S/FTP.
Інші пропозиції 2170909 за ціною від 751.43 грн до 1094.90 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2170909 | LAPP |
Category: Industrial Ethernet Cables Description: Wire; S/FTP; ETHERLINE® TRAIN; 4x2x24AWG; Cat 7; stranded; Cu Type of wire: data transmission Manufacturer series: ETHERLINE® TRAIN Cable structure: 4x2x24AWG Shield structure: braid made of copper wires; pairs shielded with Al-PET foil; shielded twofold Rated voltage: 0.125kV Wire insulation material: crosslinked copolymer Kind of core: Cu; tinned Core structure: stranded Number of cores: 8 Insulation colour: black Cable external diameter: 8.4mm Kind of material: halogen free; no flame propagation Operating temperature: -45...90°C Resistance to: flame; most of alkalis; most of chemical compounds; most of oils; ozone; UV rays CPR standard: no classification Cable application: EtherCAT; EtherNet/IP; industrial Ethernet; railway industry Cable features: twisted pair conductors No. of pairs: 4 Conform to the norm: EN 45545-2; EN 50264-1; EN 50264-3-2; EN 50525-1; IEC 60332-1-2; IEC 60332-3-25; IEC 61034-2 Core diameter: 24AWG Ethernet category: Cat 7 Kind of cable: S/FTP |
на замовлення 67 шт: термін постачання 14-30 дні (днів) |
|
| 2170909 |
|
Виробник: LAPP
Category: Industrial Ethernet Cables
Description: Wire; S/FTP; ETHERLINE® TRAIN; 4x2x24AWG; Cat 7; stranded; Cu
Type of wire: data transmission
Manufacturer series: ETHERLINE® TRAIN
Cable structure: 4x2x24AWG
Shield structure: braid made of copper wires; pairs shielded with Al-PET foil; shielded twofold
Rated voltage: 0.125kV
Wire insulation material: crosslinked copolymer
Kind of core: Cu; tinned
Core structure: stranded
Number of cores: 8
Insulation colour: black
Cable external diameter: 8.4mm
Kind of material: halogen free; no flame propagation
Operating temperature: -45...90°C
Resistance to: flame; most of alkalis; most of chemical compounds; most of oils; ozone; UV rays
CPR standard: no classification
Cable application: EtherCAT; EtherNet/IP; industrial Ethernet; railway industry
Cable features: twisted pair conductors
No. of pairs: 4
Conform to the norm: EN 45545-2; EN 50264-1; EN 50264-3-2; EN 50525-1; IEC 60332-1-2; IEC 60332-3-25; IEC 61034-2
Core diameter: 24AWG
Ethernet category: Cat 7
Kind of cable: S/FTP
Category: Industrial Ethernet Cables
Description: Wire; S/FTP; ETHERLINE® TRAIN; 4x2x24AWG; Cat 7; stranded; Cu
Type of wire: data transmission
Manufacturer series: ETHERLINE® TRAIN
Cable structure: 4x2x24AWG
Shield structure: braid made of copper wires; pairs shielded with Al-PET foil; shielded twofold
Rated voltage: 0.125kV
Wire insulation material: crosslinked copolymer
Kind of core: Cu; tinned
Core structure: stranded
Number of cores: 8
Insulation colour: black
Cable external diameter: 8.4mm
Kind of material: halogen free; no flame propagation
Operating temperature: -45...90°C
Resistance to: flame; most of alkalis; most of chemical compounds; most of oils; ozone; UV rays
CPR standard: no classification
Cable application: EtherCAT; EtherNet/IP; industrial Ethernet; railway industry
Cable features: twisted pair conductors
No. of pairs: 4
Conform to the norm: EN 45545-2; EN 50264-1; EN 50264-3-2; EN 50525-1; IEC 60332-1-2; IEC 60332-3-25; IEC 61034-2
Core diameter: 24AWG
Ethernet category: Cat 7
Kind of cable: S/FTP
на замовлення 67 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 1094.90 грн |
| 10+ | 927.99 грн |
| 25+ | 839.29 грн |
| 50+ | 751.43 грн |
