22086 HELU

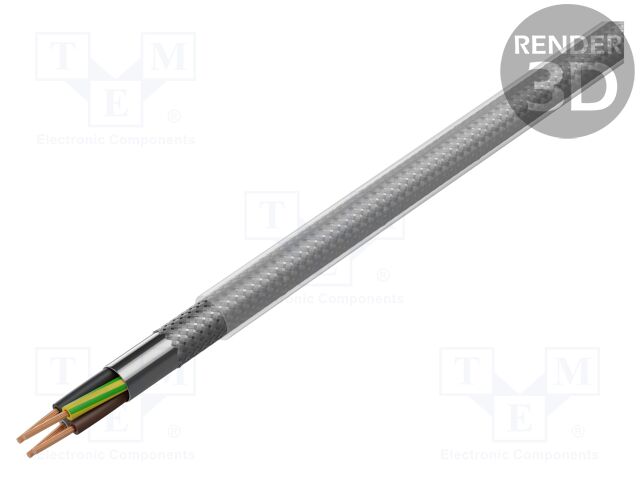

Category: Power Cords, Description: Wire; 2YSLCY-J,TOPFLEX-EMV; 4G4mm2; round; stranded; Cu; PE, Shield structure: Al foil; shielded twofold; tinned copper braid, Core marking: colours + ground wire, Kind of core: Cu, CPR standard: Eca, Cable application: frequency converters wiring; motors power 0,6/1 kV, Type of wire: mains, Wire insulation material: PE, Wire cross-section shape: round, Core structure: stranded, Insulation colour: transparent, Earth core: yellow-green, Operating temperature: -40...70°C, Core section: 4mm2, Cable external diameter: 13.6mm, Number of cores: 4, Cable structure: 4G4mm2, Flexibility class: 5, Max. current load: 34A, Rated voltage: 0.6kV; 1kV, Max motor power: 2.2/3.7kW; 3/4kW; 3.7/5.5kW; 4kW; 4/5.5kW; 5.5kW; 5.5/7.5kW; 7.5kW, Kind of wire: 2YSLCY-J; TOPFLEX-EMV.
