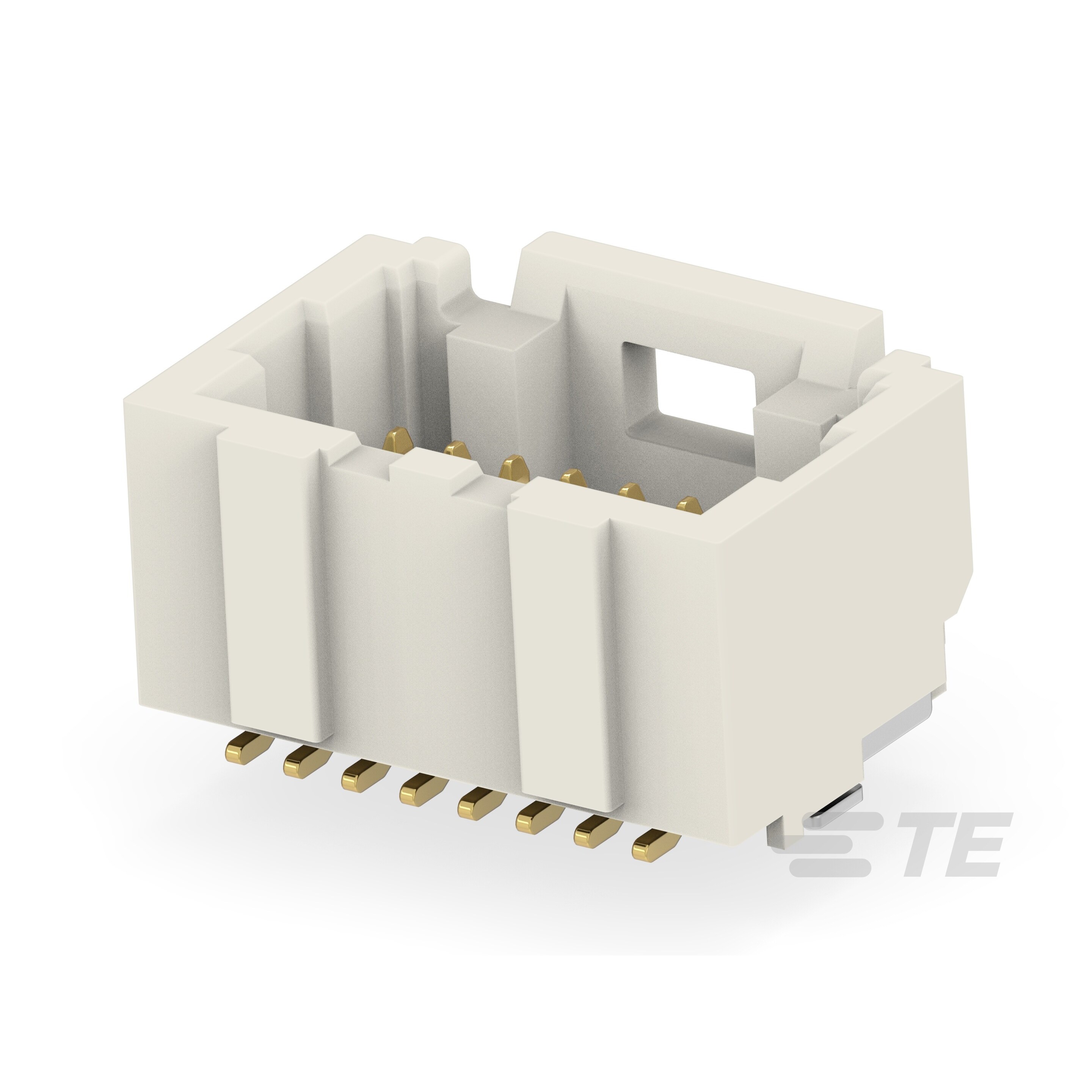

2504449-2 TE Connectivity AMP Connectors
Виробник: TE Connectivity AMP ConnectorsDescription: 1MM 2R INT LCK HPI, HDR, 2X8P, N
Packaging: Tape & Reel (TR)
Features: Pick and Place, Solder Retention
Connector Type: Header
Voltage Rating: 50VAC/DC
Current Rating (Amps): 0.8A (AC/DC)
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Contact Shape: Rectangular
Insulation Height: 0.213" (5.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA9T), Nylon 9T
Row Spacing - Mating: 0.105" (2.66mm)
на замовлення 10000 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1000+ | 73.64 грн |
| 2000+ | 67.53 грн |
| 3000+ | 65.63 грн |
| 5000+ | 59.41 грн |
| 7000+ | 58.02 грн |
| 10000+ | 56.58 грн |
Відгуки про товар
Написати відгук
Технічний опис 2504449-2 TE Connectivity AMP Connectors
Description: 1MM 2R INT LCK HPI, HDR, 2X8P, N, Packaging: Tape & Reel (TR), Features: Pick and Place, Solder Retention, Connector Type: Header, Voltage Rating: 50VAC/DC, Current Rating (Amps): 0.8A (AC/DC), Mounting Type: Surface Mount, Number of Positions: 16, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -25°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.039" (1.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Post: Gold, Contact Shape: Rectangular, Insulation Height: 0.213" (5.40mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA9T), Nylon 9T, Row Spacing - Mating: 0.105" (2.66mm).
Інші пропозиції 2504449-2 за ціною від 68.91 грн до 145.81 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2504449-2 | Виробник : TE Connectivity AMP Connectors |
Description: 1MM 2R INT LCK HPI, HDR, 2X8P, N Packaging: Cut Tape (CT) Features: Pick and Place, Solder Retention Connector Type: Header Voltage Rating: 50VAC/DC Current Rating (Amps): 0.8A (AC/DC) Mounting Type: Surface Mount Number of Positions: 16 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -25°C ~ 85°C Contact Type: Male Pin Fastening Type: Latch Holder Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Natural Pitch - Mating: 0.039" (1.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: FLASH Contact Finish - Post: Gold Contact Shape: Rectangular Insulation Height: 0.213" (5.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA9T), Nylon 9T Row Spacing - Mating: 0.105" (2.66mm) |
на замовлення 10000 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
2504449-2 | Виробник : TE Connectivity |
Headers & Wire Housings 1MM 2R INTERNAL LOCKING HPI, HDR, 2x8P, NAT,AuFL |
на замовлення 10000 шт: термін постачання 21-30 дні (днів) |
|
