Виробник: Rohm
Транзистори > Польові N-канальні
Корпус: SOT-23
Uds,V: 30 V
Idd,A: 4 A
Rds(on), Ohm: 0,03 Ohm
Ciss, pF/Qg, nC: 475/5,9
Монтаж: SMD

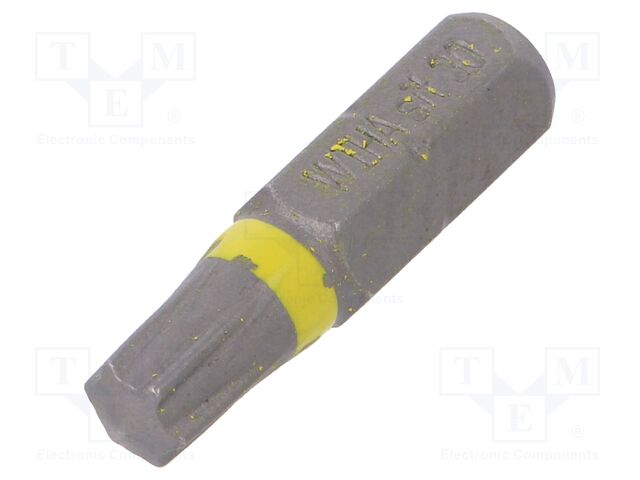

Виробник: WIHA
Category: Screwdriver Bits
Description: Screwdriver bit; SIT; SIT30; Overall len: 25mm; STANDARD
Type of tool: screwdriver bit
Kind of bit: SIT
Bit size: SIT30
Material: Chrom-vanadium steel
Overall length: 25mm
Mounting: 1/4" (C6,3mm)
Manufacturer series: STANDARD
Screwdriver bit features: hardened

Виробник: METABO
Category: Power Tools - Parts and Accessories
Description: Drill holder; 1÷10mm; Metabo devices from the Quick system
Material: metal; plastic
Manufacturer series: FUTURO PLUS
Tools application: Metabo devices from the Quick system
Version: single sleeve
Type of power tool accessories: drill holder
Diameter: 1...10mm

Виробник: METABO
Category: Power Tools - Parts and Accessories
Description: Drill holder; 1÷10mm; Metabo devices from the Quick system
Material: metal; plastic
Manufacturer series: FUTURO PLUS
Tools application: Metabo devices from the Quick system
Version: single sleeve
Type of power tool accessories: drill holder
Diameter: 1...10mm
кількість в упаковці: 1 шт

Виробник: Würth Elektronik
Description: FERRITE CORE 267 OHM CLIP
Packaging: Tray
Mounting Type: Free Hanging
Material: 4W620
Length: 1.248" (31.70mm)
Type: Flat
Design: Clip Together (Order Qty 1=1 Assembly)
Impedance @ Frequency: 267Ohm @ 100MHz
Inner Dimension: 1.315" W x 0.276" H (33.40mm x 7.00mm)
Outer Dimension: 2.094" W x 1.000" H (53.20mm x 25.40mm)

Виробник: Würth Elektronik
Description: FERRITE CORE 194 OHM SOLID
Packaging: Tray
Mounting Type: Free Hanging
Material: 4W620
Length: 1.122" (28.50mm)
Type: Flat
Design: Solid
Impedance @ Frequency: 194Ohm @ 100MHz
Inner Dimension: 1.34" W x 0.08" H (34.0mm x 2.0mm)
Outer Dimension: 1.772" W x 0.512" H (45.00mm x 13.00mm)
Part Status: Active

Виробник: Würth Elektronik
Description: FERRITE 180 OHM SOLID 52MM X 2MM
Packaging: Tray
Mounting Type: Free Hanging
Material: 4W620
Length: 1.122" (28.50mm)
Type: Flat
Design: Solid
Impedance @ Frequency: 180Ohm @ 100MHz
Inner Dimension: 2.047" W x 0.079" H (52.00mm x 2.00mm)
Outer Dimension: 2.480" W x 0.512" H (63.00mm x 13.00mm)
Part Status: Active

Виробник: Würth Elektronik
Description: FERRITE 101 OHM SOLID 52MM X 2MM
Packaging: Tray
Mounting Type: Free Hanging
Material: 4W620
Length: 0.591" (15.00mm)
Type: Flat
Design: Solid
Impedance @ Frequency: 101Ohm @ 100MHz
Inner Dimension: 2.047" W x 0.079" H (52.00mm x 2.00mm)
Outer Dimension: 2.480" W x 0.512" H (63.00mm x 13.00mm)

Виробник: Würth Elektronik
Description: FERRITE 100 OHM CLIP 34MM X 2MM
Packaging: Tray
Mounting Type: Free Hanging
Material: 4W620
Length: 0.591" (15.01mm)
Type: Flat
Design: Clip Together (Order Qty 1=1 Assembly)
Impedance @ Frequency: 100Ohm @ 100MHz
Inner Dimension: 1.339" W x 0.079" H (34.00mm x 2.00mm)
Outer Dimension: 1.772" W x 0.512" H (45.00mm x 13.00mm)

Виробник: Würth Elektronik
Description: FERRITE CORE 175 OHM CLIP
Packaging: Tray
Mounting Type: Free Hanging
Material: 4W620
Length: 1.122" (28.50mm)
Type: Flat
Design: Clip Together (Order Qty 1=1 Assembly)
Impedance @ Frequency: 175Ohm @ 100MHz
Inner Dimension: 3.283" W x 0.094" H (83.40mm x 2.40mm)
Outer Dimension: 4.331" W x 0.602" H (110.00mm x 15.30mm)

Виробник: INTERSIL
01+ CAN8

Виробник: TE Connectivity AMP Connectors
Description: CONN RING CIRC 14-16AWG #10
Features: Serrated Termination
Packaging: Tape & Reel (TR)
Contact Finish: Tin
Color: Blue
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 14-16 AWG
Insulation: Insulated
Thickness: 0.031" (0.79mm)
Terminal Type: Circular
Stud/Tab Size: 10 Stud
Length - Overall: 0.859" (21.82mm)
Termination: Crimp
Width - Outer Edges: 0.343" (8.71mm)
Contact Material: Copper
Part Status: Active

Виробник: TE Connectivity AMP Connectors
Description: CONN RING CIRC 14-16AWG #10
Features: Serrated Termination
Packaging: Cut Tape (CT)
Contact Finish: Tin
Color: Blue
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 14-16 AWG
Insulation: Insulated
Thickness: 0.031" (0.79mm)
Terminal Type: Circular
Stud/Tab Size: 10 Stud
Length - Overall: 0.859" (21.82mm)
Termination: Crimp
Width - Outer Edges: 0.343" (8.71mm)
Contact Material: Copper
Part Status: Active

Виробник: Kitronik Ltd.
Description: LINEAR ACTUATOR MOTOR 4.8-6V
Packaging: Bulk
Voltage - Rated: 4.8 ~ 6VDC
Type: Linear Actuator
Operating Temperature: 0°C ~ 55°C
Termination Style: Wire Leads with Connector
Gear Reduction Ratio: 0.66
Motor Type: Brushed
Construction: Rack and Pinion

Виробник: TE Connectivity AMP Connectors
Description: CONN RING CIRC 14-16AWG #10
Features: Serrated Termination
Packaging: Bulk
Contact Finish: Tin
Color: Blue
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 14-16 AWG
Insulation: Insulated
Thickness: 0.031" (0.79mm)
Terminal Type: Circular
Stud/Tab Size: 10 Stud
Length - Overall: 0.859" (21.82mm)
Termination: Crimp
Width - Outer Edges: 0.343" (8.71mm)
Contact Material: Copper
Part Status: Active

Виробник: Würth Elektronik
Description: FIXED IND 150UH 770MA 570MOHM SM
Packaging: Cut Tape (CT)
Tolerance: ±20%
Package / Case: Nonstandard
Size / Dimension: 0.236" L x 0.236" W (6.00mm x 6.00mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 570mOhm
Frequency - Self Resonant: 5.4MHz
Ratings: AEC-Q200
Current - Saturation (Isat): 950mA
Inductance Frequency - Test: 100 kHz
Supplier Device Package: 6045
Height - Seated (Max): 0.177" (4.50mm)
Part Status: Active
Inductance: 150 µH
Current Rating (Amps): 0.84 A

Виробник: Advanced Thermal Solutions Inc.
Description: HEATSINK 35X35X30MM L-TAB T766
Packaging: Tray
Material: Aluminum
Length: 1.378" (35.00mm)
Shape: Square, Fins
Type: Top Mount
Width: 1.378" (35.00mm)
Package Cooled: Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method: Push Pin
Thermal Resistance @ Forced Air Flow: 3.93°C/W @ 100 LFM
Fin Height: 1.181" (30.00mm)
Material Finish: Blue Anodized

Виробник: Analog Devices Inc.
Description: IC RF AMP VSAT 12GHZ-16GHZ DIE
Packaging: Tray
Package / Case: Die
Mounting Type: Surface Mount
Frequency: 12GHz ~ 16GHz
RF Type: VSAT, DBS
Voltage - Supply: 5V
Gain: 23dB
Current - Supply: 200mA
Noise Figure: 2.5dB
P1dB: 25dBm
Test Frequency: 12GHz ~ 16GHz
Supplier Device Package: Die
Part Status: Active

Виробник: Analog Devices Inc.
Description: IC RF AMP VSAT 21GHZ-32GHZ DIE
Packaging: Tray
Package / Case: Die
Mounting Type: Surface Mount
Frequency: 21GHz ~ 32GHz
RF Type: VSAT, DBS
Voltage - Supply: 5V
Gain: 16dB
Current - Supply: 200mA
Noise Figure: 5dB
P1dB: 23dBm
Test Frequency: 24GHz ~ 28GHz
Supplier Device Package: Die
Part Status: Active

Виробник: Analog Devices Inc.
Description: IC RF AMP VSAT 9GHZ-18GHZ DIE
Packaging: Bulk
Package / Case: Die
Mounting Type: Surface Mount
Frequency: 9GHz ~ 18GHz
RF Type: VSAT, DBS
Voltage - Supply: 3V
Gain: 20dB
Current - Supply: 65mA
Noise Figure: 2dB
P1dB: 13dBm
Test Frequency: 9GHz ~ 12GHz
Supplier Device Package: Die

Виробник: Analog Devices Inc.
Description: IC RF AMP VSAT 17GHZ-26GHZ DIE
Packaging: Tray
Package / Case: Die
Mounting Type: Surface Mount
Frequency: 17GHz ~ 26GHz
RF Type: VSAT, DBS
Voltage - Supply: 3V
Gain: 18dB
Current - Supply: 67mA
Noise Figure: 2.6dB
P1dB: 13dBm
Test Frequency: 22GHz ~ 26GHz
Supplier Device Package: Die

Виробник: Analog Devices Inc.
Description: IC RF AMP VSAT 18GHZ-32GHZ DIE
Packaging: Tray
Package / Case: Die
Mounting Type: Surface Mount
Frequency: 18GHz ~ 32GHz
RF Type: VSAT, DBS
Voltage - Supply: 3V
Gain: 14dB
Current - Supply: 65mA
Noise Figure: 3.5dB
P1dB: 14dBm
Test Frequency: 28GHz ~ 32GHz
Supplier Device Package: Die

Виробник: 3M
Description: CONN HEADER R/A 16POS 2.54MM
Packaging: Bulk
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole, Right Angle
Number of Positions: 16
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.112" (2.84mm)
Insulation Height: 0.338" (8.59mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.243" (6.17mm)

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 20V 600MA DFN1006-3
Packaging: Cut Tape (CT)
Package / Case: SC-101, SOT-883
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 600mA (Tc)
Rds On (Max) @ Id, Vgs: 620mOhm @ 600mA, 4.5V
Power Dissipation (Max): 2.7W (Tc)
Vgs(th) (Max) @ Id: 950mV @ 250µA
Supplier Device Package: SOT-883
Part Status: Active
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 0.7 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 21.3 pF @ 10 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 20V 600MA DFN1006-3
Packaging: Tape & Reel (TR)
Package / Case: SC-101, SOT-883
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 600mA (Tc)
Rds On (Max) @ Id, Vgs: 620mOhm @ 600mA, 4.5V
Power Dissipation (Max): 2.7W (Tc)
Vgs(th) (Max) @ Id: 950mV @ 250µA
Supplier Device Package: SOT-883
Part Status: Active
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 0.7 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 21.3 pF @ 10 V

Виробник: Nexperia USA Inc.
Description: MOSFET P-CH 20V 500MA DFN1006-3
Packaging: Tape & Reel (TR)
Package / Case: SC-101, SOT-883
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 500mA (Ta)
Rds On (Max) @ Id, Vgs: 1.4Ohm @ 500mA, 4.5V
Power Dissipation (Max): 360mW (Ta), 2.7W (Tc)
Vgs(th) (Max) @ Id: 950mV @ 250µA
Supplier Device Package: SOT-883
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
Vgs (Max): ±8V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 2.1 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 43 pF @ 10 V

Виробник: Nexperia USA Inc.
Description: MOSFET P-CH 20V 500MA DFN1006-3
Packaging: Cut Tape (CT)
Package / Case: SC-101, SOT-883
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 500mA (Ta)
Rds On (Max) @ Id, Vgs: 1.4Ohm @ 500mA, 4.5V
Power Dissipation (Max): 360mW (Ta), 2.7W (Tc)
Vgs(th) (Max) @ Id: 950mV @ 250µA
Supplier Device Package: SOT-883
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
Vgs (Max): ±8V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 2.1 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 43 pF @ 10 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 80V 62A LFPAK56
Packaging: Tape & Reel (TR)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 62A (Tc)
Rds On (Max) @ Id, Vgs: 14mOhm @ 15A, 10V
Power Dissipation (Max): 147W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 28.9 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds: 4640 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 80V 62A LFPAK56
Packaging: Cut Tape (CT)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 62A (Tc)
Rds On (Max) @ Id, Vgs: 14mOhm @ 15A, 10V
Power Dissipation (Max): 147W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 28.9 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds: 4640 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 100V 69A LFPAK56
Packaging: Cut Tape (CT)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 69A (Tc)
Rds On (Max) @ Id, Vgs: 14.7mOhm @ 20A, 10V
Power Dissipation (Max): 195W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 86.3 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 6139 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 100V 69A LFPAK56
Packaging: Tape & Reel (TR)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 69A (Tc)
Rds On (Max) @ Id, Vgs: 14.7mOhm @ 20A, 10V
Power Dissipation (Max): 195W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 86.3 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 6139 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 100V 56A LFPAK56
Packaging: Tape & Reel (TR)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 56A (Tc)
Rds On (Max) @ Id, Vgs: 18mOhm @ 15A, 10V
Power Dissipation (Max): 167W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 72.4 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 5085 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 100V 56A LFPAK56
Packaging: Cut Tape (CT)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 56A (Tc)
Rds On (Max) @ Id, Vgs: 18mOhm @ 15A, 10V
Power Dissipation (Max): 167W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 72.4 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 5085 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 100V 49A LFPAK56
Packaging: Tape & Reel (TR)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 49A (Tc)
Rds On (Max) @ Id, Vgs: 21.5mOhm @ 15A, 10V
Power Dissipation (Max): 147W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 65.6 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 4640 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 100V 49A LFPAK56
Packaging: Cut Tape (CT)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 49A (Tc)
Rds On (Max) @ Id, Vgs: 21.5mOhm @ 15A, 10V
Power Dissipation (Max): 147W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 65.6 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 4640 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 80V 37A LFPAK56
Packaging: Cut Tape (CT)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 37A (Tc)
Rds On (Max) @ Id, Vgs: 25mOhm @ 10A, 10V
Power Dissipation (Max): 95W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 17.1 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds: 2703 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 80V 37A LFPAK56
Packaging: Tape & Reel (TR)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 37A (Tc)
Rds On (Max) @ Id, Vgs: 25mOhm @ 10A, 10V
Power Dissipation (Max): 95W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 17.1 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds: 2703 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 60V 100A LFPAK56
Packaging: Cut Tape (CT)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
Rds On (Max) @ Id, Vgs: 5.2mOhm @ 25A, 10V
Power Dissipation (Max): 195W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 39.4 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds: 6319 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 60V 100A LFPAK56
Packaging: Tape & Reel (TR)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
Rds On (Max) @ Id, Vgs: 5.2mOhm @ 25A, 10V
Power Dissipation (Max): 195W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 39.4 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds: 6319 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 60V 100A LFPAK56
Packaging: Tape & Reel (TR)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
Rds On (Max) @ Id, Vgs: 5.6mOhm @ 25A, 10V
Power Dissipation (Max): 167W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 66.8 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 5026 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 60V 100A LFPAK56
Packaging: Cut Tape (CT)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
Rds On (Max) @ Id, Vgs: 5.6mOhm @ 25A, 10V
Power Dissipation (Max): 167W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 66.8 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 5026 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 60V 86A LFPAK56
Packaging: Tape & Reel (TR)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 86A (Tc)
Rds On (Max) @ Id, Vgs: 7.5mOhm @ 20A, 10V
Power Dissipation (Max): 147W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds: 4570 pF @ 25 V

Виробник: Nexperia USA Inc.
Description: MOSFET N-CH 60V 86A LFPAK56
Packaging: Cut Tape (CT)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 86A (Tc)
Rds On (Max) @ Id, Vgs: 7.5mOhm @ 20A, 10V
Power Dissipation (Max): 147W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 1mA
Supplier Device Package: LFPAK56, Power-SO8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds: 4570 pF @ 25 V

Виробник: Amphenol Piher Sensing Systems
Description: TRIMMER 10K OHM 0.15W PC PIN TOP
Power (Watts): 0.15W
Tolerance: ±10%
Packaging: Bulk
Temperature Coefficient: ±300ppm/°C
Adjustment Type: Top Adjustment
Size / Dimension: Round - 0.406" Dia (10.30mm)
Mounting Type: Through Hole
Termination Style: PC Pins
Resistive Material: Carbon
Part Status: Active
Resistance: 10 kOhms
Number of Turns: 1.0

Виробник: TE Connectivity Passive Product
Description: RES 237 OHM 0.1% 1/10W 0402
Packaging: Tape & Reel (TR)
Power (Watts): 0.1W, 1/10W
Tolerance: ±0.1%
Package / Case: 0402 (1005 Metric)
Temperature Coefficient: ±25ppm/°C
Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Composition: Thin Film
Operating Temperature: -55°C ~ 155°C
Number of Terminations: 2
Supplier Device Package: 0402
Height - Seated (Max): 0.014" (0.35mm)
Resistance: 237 Ohms

Виробник: TE Connectivity Passive Product
Description: RES 237 OHM 0.1% 1/10W 0402
Packaging: Cut Tape (CT)
Power (Watts): 0.1W, 1/10W
Tolerance: ±0.1%
Package / Case: 0402 (1005 Metric)
Temperature Coefficient: ±25ppm/°C
Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Composition: Thin Film
Operating Temperature: -55°C ~ 155°C
Number of Terminations: 2
Supplier Device Package: 0402
Height - Seated (Max): 0.014" (0.35mm)
Resistance: 237 Ohms

Виробник: NXP USA Inc.
Description: EVAL BOARD FOR SSL5021BTS
Packaging: Bulk
Voltage - Output: 40V ~ 60V
Voltage - Input: 85 ~ 140 VAC
Current - Output / Channel: 93mA
Utilized IC / Part: SSL5021BTS
Supplied Contents: Board(s)
Outputs and Type: 1 Non-Isolated Output
Part Status: Obsolete
Contents: Board(s)

Виробник: Texas Instruments
Description: IC REG BUCK BST 3.3V 3.5A 14VSON
Packaging: Cut Tape (CT)
Package / Case: 14-VFDFN Exposed Pad
Output Type: Fixed
Mounting Type: Surface Mount
Number of Outputs: 1
Function: Step-Up/Step-Down
Current - Output: 3.5A (Switch)
Operating Temperature: -40°C ~ 85°C (TA)
Output Configuration: Positive
Frequency - Switching: 2.4MHz
Voltage - Input (Max): 5.5V
Topology: Buck-Boost
Supplier Device Package: 14-VSON (4x3)
Synchronous Rectifier: Yes
Voltage - Input (Min): 1.8V
Voltage - Output (Min/Fixed): 3.3V
Part Status: Active

Виробник: Texas Instruments
Description: IC REG BUCK BST 3.3V 3.5A 14VSON
Packaging: Tape & Reel (TR)
Package / Case: 14-VFDFN Exposed Pad
Output Type: Fixed
Mounting Type: Surface Mount
Number of Outputs: 1
Function: Step-Up/Step-Down
Current - Output: 3.5A (Switch)
Operating Temperature: -40°C ~ 85°C (TA)
Output Configuration: Positive
Frequency - Switching: 2.4MHz
Voltage - Input (Max): 5.5V
Topology: Buck-Boost
Supplier Device Package: 14-VSON (4x3)
Synchronous Rectifier: Yes
Voltage - Input (Min): 1.8V
Voltage - Output (Min/Fixed): 3.3V
Part Status: Active

Виробник: Dremel
Description: SOCKET IMPACT HEX 1/2"
Packaging: Bulk
Tool Type: Socket, Impact
Size: 1/2"
Tip Type: Hex
Drive Size: 3/8"

Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 21; BLM KG 1; 1.5A; 125V
Overall length: 11.5mm
Manufacturer series: BLM KG 1
Flammability rating: UL94V-0
Height: 8.5mm
Number of pins: 21
Contact material: bronze
Connector pinout layout: 1x21
Contacts pitch: 1.27mm
Kind of connector: female
Electrical mounting: THT
Lead length: 3mm
Plating thickness: 0.254µm
Spatial orientation: straight
Connector: socket
Contact plating: gold-plated
Type of connector: pin strips
Rated voltage: 125V
Operating temperature: -40...163°C
Current rating: 1.5A

Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 21; BLM KG 1; 1.5A; 125V
Overall length: 11.5mm
Manufacturer series: BLM KG 1
Flammability rating: UL94V-0
Height: 8.5mm
Number of pins: 21
Contact material: bronze
Connector pinout layout: 1x21
Contacts pitch: 1.27mm
Kind of connector: female
Electrical mounting: THT
Lead length: 3mm
Plating thickness: 0.254µm
Spatial orientation: straight
Connector: socket
Contact plating: gold-plated
Type of connector: pin strips
Rated voltage: 125V
Operating temperature: -40...163°C
Current rating: 1.5A
кількість в упаковці: 1 шт

Виробник: TE Connectivity Deutsch Connectors
Description: FAKRA 90 STAMPED N FORMED ASSY R
Packaging: Tape & Reel (TR)

Виробник: 3M
Description: CLOTH BELT 767F 36+ YF-WEIGHT 64
Packaging: Bulk
Color: Maroon
Length: 102.99" (2.62m)
Type: Abrasive Belt
Width: 64.02" (1.63m)
Applications: Finishing, Sanding
Abrasive Material: Ceramic
Abrasive Grit: 36

Виробник: Würth Elektronik
Description: FERRITE CORE 192 OHM SOLID
Packaging: Tray
Mounting Type: Free Hanging
Material: 4W620
Length: 1.122" (28.50mm)
Type: Flat
Design: Solid
Impedance @ Frequency: 192Ohm @ 100MHz
Inner Dimension: 1.34" W x 0.08" H (34.0mm x 2.0mm)
Outer Dimension: 3.000" W x 0.512" H (76.20mm x 13.00mm)

Виробник: Mersen USA Newburyport-MA L.L.C.
Description: NH 2 63A 400V GG
Packaging: Bulk

Виробник: Rosenberger
Description: COAX ADAPT PSMP TO PSMP
Packaging: Bulk
Impedance: 50 Ohms
Mounting Type: Free Hanging (In-Line)
Style: Straight
Convert From (Adapter End): PSMP Jack, Female Socket
Convert To (Adapter End): PSMP Jack, Female Socket
Fastening Type: Snap-On, Snap-On
Adapter Series: PSMP to PSMP
Adapter Type: Jack to Jack
Center Gender: Female to Female
Conversion Type: Same Series
Center Contact Plating: Gold
Frequency - Max: 10 GHz

Виробник: Kitronik Ltd.
Description: GEARMOTOR 150 RPM 4.5V
Packaging: Bulk
Voltage - Rated: 4.5VDC
Size / Dimension: Rectangular - 1.437" x 1.142" (36.50mm x 29.00mm)
Function: Gearmotor
RPM: 150 RPM
Type: DC Motor
Termination Style: PC Pin
Diameter - Shaft: 0.118" (3.00mm)
Length - Shaft and Bearing: 0.382" (9.70mm)
Gear Reduction Ratio: 120
Motor Type: Brushed

Виробник: Kitronik Ltd.
Description: GREEN 5-SPOKE SERVO WHEEL PAIR
Packaging: Bulk
Type: Wheel Kit
