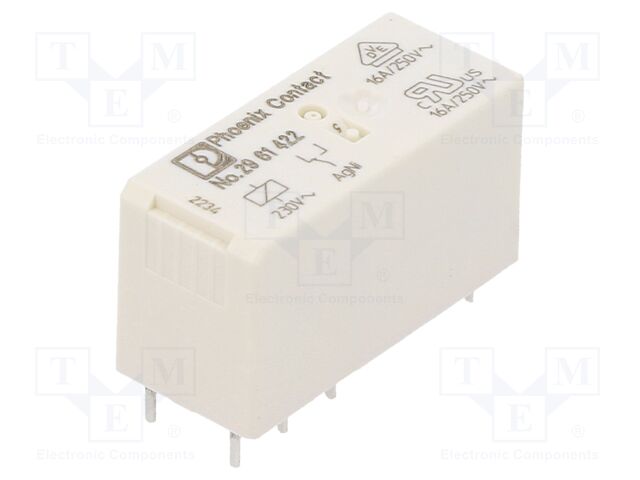

2961422 PHOENIX CONTACT
Виробник: PHOENIX CONTACT
Category: Miniature Electromagnetic Relays
Description: Relay: miniature; SPDT; Ucoil: 230VAC; Icontacts max: 16A; 2A/24VDC
Contact material: AgNi
Related items: RIF-1-BPT/2X21
Mounting: PCB
Leads: for soldering
Type of relay: miniature
Relay variant: miniature
Contacts configuration: SPDT
Operating temperature: -40...85°C
Coil current: 3mA
Release time: 9ms
Operate time: 12ms
Body dimensions: 29x12.7x15.7mm
DC contacts rating @R: 2A / 24V DC
Contact current max.: 16A
AC contacts rating @R: 6A / 250V AC
Coil voltage min.: 179.4V AC
Switched voltage: max. 250V AC; max. 250V DC
Rated coil voltage: 230V AC
Coil voltage max.: 356.5V AC
Mechanical durability: 10000000 cycles
Coil resistance: 32.5kΩ
Відгуки про товар
Написати відгук
Технічний опис 2961422 PHOENIX CONTACT
Category: Miniature Electromagnetic Relays, Description: Relay: miniature; SPDT; Ucoil: 230VAC; Icontacts max: 16A; 2A/24VDC, Contact material: AgNi, Related items: RIF-1-BPT/2X21, Mounting: PCB, Leads: for soldering, Type of relay: miniature, Relay variant: miniature, Contacts configuration: SPDT, Operating temperature: -40...85°C, Coil current: 3mA, Release time: 9ms, Operate time: 12ms, Body dimensions: 29x12.7x15.7mm, DC contacts rating @R: 2A / 24V DC, Contact current max.: 16A, AC contacts rating @R: 6A / 250V AC, Coil voltage min.: 179.4V AC, Switched voltage: max. 250V AC; max. 250V DC, Rated coil voltage: 230V AC, Coil voltage max.: 356.5V AC, Mechanical durability: 10000000 cycles, Coil resistance: 32.5kΩ.
Інші пропозиції 2961422 за ціною від 866.49 грн до 1034.64 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
2961422 | Виробник : Phoenix Contact |
Industrial Relays REL-MR-230AC/21HC |
на замовлення 41 шт: термін постачання 21-30 дні (днів) |
|
||||
 |
2961422 | Виробник : Phoenix Contact |
Description: RELAY GEN PURPOSE SPDT 16A 230V Approval Agency: cULus, EAC, UR Contact Form: SPDT (1 Form C) Contact Material: Silver Nickel (AgNi) Coil Type: Non Latching Coil Current: 2.5 mA Relay Type: General Purpose Termination Style: PC Pin Operating Temperature: -40°C ~ 85°C Coil Voltage: 230VAC Mounting Type: Through Hole Packaging: Tube Part Status: Active Release Time: 9 ms Operate Time: 12 ms Switching Voltage: 250VAC, 250VDC - Max Contact Rating (Current): 16 A |
на замовлення 1207 шт: термін постачання 21-31 дні (днів) |
|
