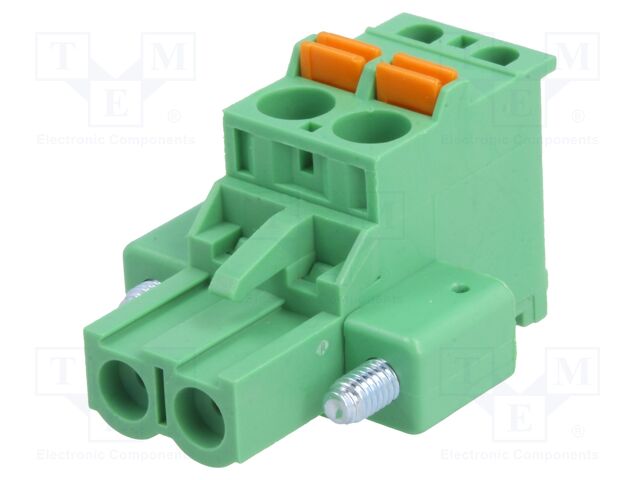

2EDGKDAM-5.0-02P-14-00AH DEGSON ELECTRONICS

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 2EDGKDAM; 20A, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 20A, Rated voltage: 0.32kV, Spatial orientation: angled 90°, Mechanical mounting: for cable, Electrical mounting: spring clamp, Contact material: phosphor bronze, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Wire size: 26AWG...12AWG, Wire cross-section: 2.5mm2, Contacts pitch: 5mm, Number of ways: 2, Locking system: screws, Conform to the norm: CE; UL; VDE, Number of terminals: 2, Operating temperature: -40...105°C, Manufacturer series: 2EDGKDAM, Connector variant: with push button, Connector pinout layout: 1x2.
