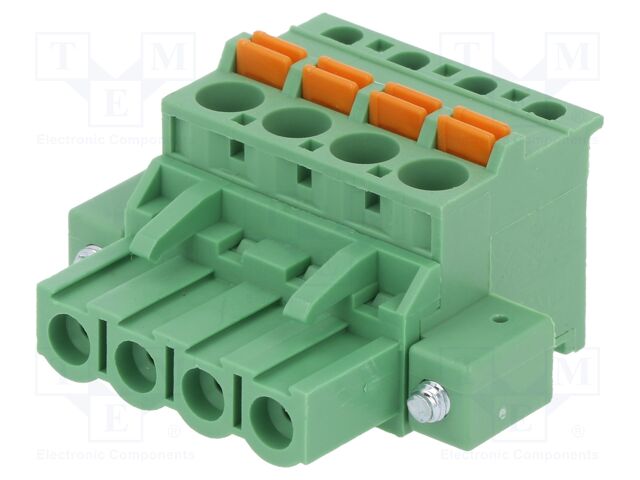

2EDGKDAM-5.08-04P-14-00AH DEGSON ELECTRONICS
Виробник: DEGSON ELECTRONICSCategory: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 2EDGKDAM; 20A
Type of connector: pluggable terminal block
Connector: plug
Current rating: 20A
Rated voltage: 320V
Spatial orientation: angled 90°
Connector variant: with push button
Mechanical mounting: for cable
Electrical mounting: spring clamp
Contact material: phosphor bronze
Colour: green
Flammability rating: UL94V-0
Body material: polyamide 66
Wire size: 26AWG...12AWG
Connector pinout layout: 1x4
Wire cross-section: 2.5mm2
Contacts pitch: 5.08mm
Number of ways: 4
Conform to the norm: CE; UL; VDE
Operating temperature: -40...105°C
Kind of connector: female
Locking system: screws
Number of terminals: 4
Manufacturer series: 2EDGKDAM
на замовлення 91 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 5+ | 82.22 грн |
| 20+ | 44.60 грн |
| 55+ | 42.33 грн |
Відгуки про товар
Написати відгук
Технічний опис 2EDGKDAM-5.08-04P-14-00AH DEGSON ELECTRONICS
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 2EDGKDAM; 20A, Type of connector: pluggable terminal block, Connector: plug, Current rating: 20A, Rated voltage: 320V, Spatial orientation: angled 90°, Connector variant: with push button, Mechanical mounting: for cable, Electrical mounting: spring clamp, Contact material: phosphor bronze, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Wire size: 26AWG...12AWG, Connector pinout layout: 1x4, Wire cross-section: 2.5mm2, Contacts pitch: 5.08mm, Number of ways: 4, Conform to the norm: CE; UL; VDE, Operating temperature: -40...105°C, Kind of connector: female, Locking system: screws, Number of terminals: 4, Manufacturer series: 2EDGKDAM, кількість в упаковці: 1 шт.
Інші пропозиції 2EDGKDAM-5.08-04P-14-00AH за ціною від 50.80 грн до 98.66 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2EDGKDAM-5.08-04P-14-00AH | Виробник : DEGSON ELECTRONICS |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 2EDGKDAM; 20A Type of connector: pluggable terminal block Connector: plug Current rating: 20A Rated voltage: 320V Spatial orientation: angled 90° Connector variant: with push button Mechanical mounting: for cable Electrical mounting: spring clamp Contact material: phosphor bronze Colour: green Flammability rating: UL94V-0 Body material: polyamide 66 Wire size: 26AWG...12AWG Connector pinout layout: 1x4 Wire cross-section: 2.5mm2 Contacts pitch: 5.08mm Number of ways: 4 Conform to the norm: CE; UL; VDE Operating temperature: -40...105°C Kind of connector: female Locking system: screws Number of terminals: 4 Manufacturer series: 2EDGKDAM кількість в упаковці: 1 шт |
на замовлення 91 шт: термін постачання 14-21 дні (днів) |
|
||||||||
|
2EDGKDAM-5.08-04P-14-00AH Код товару: 139672
Додати до обраних
Обраний товар
|
Роз'єми, клеми, з'єднувачі > Комутаційні DIN |
товару немає в наявності
|
