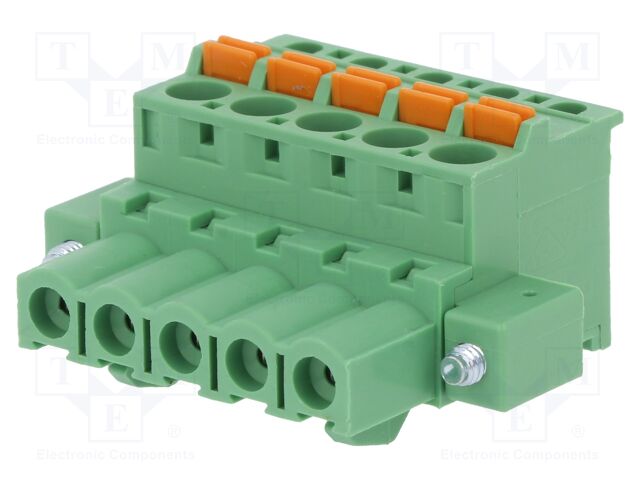

2EDGKDBM-5.08-05P-14-00AH DEGSON ELECTRONICS

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 2EDGKDBM; 20A, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Manufacturer series: 2EDGKDBM, Current rating: 20A, Rated voltage: 0.32kV, Spatial orientation: angled 90°, Mechanical mounting: for cable, Electrical mounting: spring clamp, Contact material: phosphor bronze, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Wire size: 26AWG...12AWG, Connector pinout layout: 1x5, Wire cross-section: 2.5mm2, Contacts pitch: 5.08mm, Number of ways: 5, Locking system: latch; screws, Conform to the norm: CE; UL; VDE, Number of terminals: 5, Operating temperature: -40...105°C, Connector variant: with push button.
