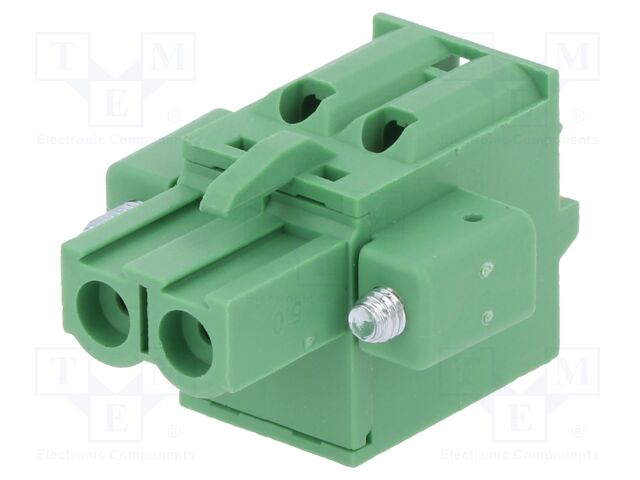

2EDGKDFM-5.0-02P-14-00AH DEGSON ELECTRONICS
Виробник: DEGSON ELECTRONICSCategory: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 2EDGKDFM; 20A
Operating temperature: -40...105°C
Current rating: 20A
Flammability rating: UL94V-0
Body material: polyamide 66
Contact material: phosphor bronze
Connector pinout layout: 1x2
Connector variant: with push button
Contacts pitch: 5mm
Conform to the norm: CE; UL
Wire cross-section: 2.5mm2
Wire size: 26AWG...12AWG
Locking system: latch; screws
Electrical mounting: spring clamp
Mechanical mounting: for cable
Number of ways: 2
Number of terminals: 2
Manufacturer series: 2EDGKDFM
Spatial orientation: straight
Colour: green
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Rated voltage: 320V
на замовлення 317 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 6+ | 77.33 грн |
| 18+ | 49.89 грн |
| 50+ | 46.87 грн |
Відгуки про товар
Написати відгук
Технічний опис 2EDGKDFM-5.0-02P-14-00AH DEGSON ELECTRONICS
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 2EDGKDFM; 20A, Operating temperature: -40...105°C, Current rating: 20A, Flammability rating: UL94V-0, Body material: polyamide 66, Contact material: phosphor bronze, Connector pinout layout: 1x2, Connector variant: with push button, Contacts pitch: 5mm, Conform to the norm: CE; UL, Wire cross-section: 2.5mm2, Wire size: 26AWG...12AWG, Locking system: latch; screws, Electrical mounting: spring clamp, Mechanical mounting: for cable, Number of ways: 2, Number of terminals: 2, Manufacturer series: 2EDGKDFM, Spatial orientation: straight, Colour: green, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Rated voltage: 320V, кількість в упаковці: 1 шт.
Інші пропозиції 2EDGKDFM-5.0-02P-14-00AH за ціною від 56.24 грн до 92.80 грн
