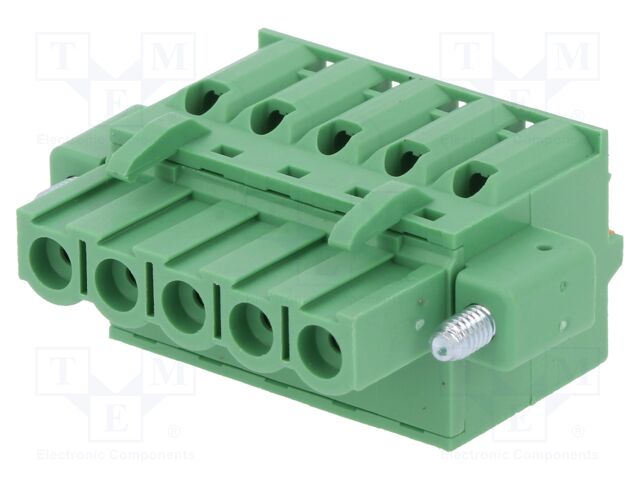

2EDGKDFM-5.0-05P-14-00AH DEGSON ELECTRONICS
Виробник: DEGSON ELECTRONICSCategory: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 2EDGKDFM; 20A
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 20A
Rated voltage: 320V
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: spring clamp
Contact material: phosphor bronze
Colour: green
Flammability rating: UL94V-0
Body material: polyamide 66
Wire size: 26AWG...12AWG
Wire cross-section: 2.5mm2
Contacts pitch: 5mm
Number of ways: 5
Locking system: latch; screws
Conform to the norm: CE; UL
Number of terminals: 5
Operating temperature: -40...105°C
Connector pinout layout: 1x5
Connector variant: with push button
Manufacturer series: 2EDGKDFM
на замовлення 174 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 4+ | 103.38 грн |
| 10+ | 94.49 грн |
| 26+ | 89.95 грн |
| 50+ | 83.90 грн |
Відгуки про товар
Написати відгук
Технічний опис 2EDGKDFM-5.0-05P-14-00AH DEGSON ELECTRONICS
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 2EDGKDFM; 20A, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 20A, Rated voltage: 320V, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: spring clamp, Contact material: phosphor bronze, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Wire size: 26AWG...12AWG, Wire cross-section: 2.5mm2, Contacts pitch: 5mm, Number of ways: 5, Locking system: latch; screws, Conform to the norm: CE; UL, Number of terminals: 5, Operating temperature: -40...105°C, Connector pinout layout: 1x5, Connector variant: with push button, Manufacturer series: 2EDGKDFM, кількість в упаковці: 1 шт.
Інші пропозиції 2EDGKDFM-5.0-05P-14-00AH за ціною від 82.54 грн до 124.06 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2EDGKDFM-5.0-05P-14-00AH | Виробник : DEGSON ELECTRONICS |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 2EDGKDFM; 20A Type of connector: pluggable terminal block Connector: plug Kind of connector: female Current rating: 20A Rated voltage: 320V Spatial orientation: straight Mechanical mounting: for cable Electrical mounting: spring clamp Contact material: phosphor bronze Colour: green Flammability rating: UL94V-0 Body material: polyamide 66 Wire size: 26AWG...12AWG Wire cross-section: 2.5mm2 Contacts pitch: 5mm Number of ways: 5 Locking system: latch; screws Conform to the norm: CE; UL Number of terminals: 5 Operating temperature: -40...105°C Connector pinout layout: 1x5 Connector variant: with push button Manufacturer series: 2EDGKDFM кількість в упаковці: 1 шт |
на замовлення 174 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||
|
2EDGKDFM-5.0-05P-14-00AH Код товару: 139700
