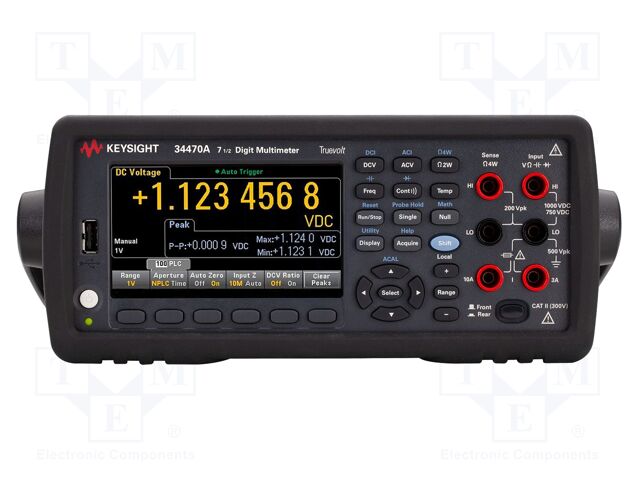

34470A KEYSIGHT

Category: Benchtop digital multimeters
Description: Benchtop multimeter; LCD TFT 4,3"; 7,5 digit; 480x272; 3÷300kHz
Measurement memory: 50000
Display resolution: 480x272
Dimensions: 261x104x303mm
Standard equipment: calibration certificate; CD with documentation; mains cable; test leads; USB cable
Measuring instrument features: autoranging; graphical display of measurement results; measure with Truevolt confidence; MIN/MAX/MEDIUM function
Type of meter: benchtop multimeter
Continuity test: acoustic indication
Sampling: 5000x/s
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
True effective value measurement: True RMS AC
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; resistance (2-wire); resistance (4-wire); temperature
AC current measuring range: 100µA; 1mA; 10mA; 100mA; 1A
Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ; 1GΩ
DC current measuring range: 1µA; 10µA; 100µA; 1mA; 10mA; 100mA; 1A; 3A
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
AC voltage measuring range: 100mV; 1V; 10V; 100V; 750V
Frequency measuring range: 3...300kHz
Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF
Diode test: 5V
Supply voltage 400Hz: 100...120V AC
Connectors for the country: Europe
Display parameters: 7,5 digit
Frequency measuring accuracy: ±0.004%
Capacitance measuring accuracy: ±(0.4%+ 0.1% range)
AC current measuring accuracy: ±(0.07% + 0.04% range)
DC voltage measuring accuracy: ±(0.0008% + 0.0002% range)
DC current measuring accuracy: ±(0.007% + 0.001% range)
AC voltage measuring accuracy: ±(0.02% + 0.02% range)
Resistance measuring accuracy: ±(0.002%+0.0005% range)
Kind of display used: LCD TFT 4,3"
Supply voltage: 100...240V AC
Interface: LAN; USB
на замовлення 1 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
1+ | 315256.29 грн |
Відгуки про товар
Написати відгук
Технічний опис 34470A KEYSIGHT
Category: Benchtop digital multimeters, Description: Benchtop multimeter; LCD TFT 4,3"; 7,5 digit; 480x272; 3÷300kHz, Measurement memory: 50000, Display resolution: 480x272, Dimensions: 261x104x303mm, Standard equipment: calibration certificate; CD with documentation; mains cable; test leads; USB cable, Measuring instrument features: autoranging; graphical display of measurement results; measure with Truevolt confidence; MIN/MAX/MEDIUM function, Type of meter: benchtop multimeter, Continuity test: acoustic indication, Sampling: 5000x/s, Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use., True effective value measurement: True RMS AC, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; resistance (2-wire); resistance (4-wire); temperature, AC current measuring range: 100µA; 1mA; 10mA; 100mA; 1A, Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ; 1GΩ, DC current measuring range: 1µA; 10µA; 100µA; 1mA; 10mA; 100mA; 1A; 3A, DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV, AC voltage measuring range: 100mV; 1V; 10V; 100V; 750V, Frequency measuring range: 3...300kHz, Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF, Diode test: 5V, Supply voltage 400Hz: 100...120V AC, Connectors for the country: Europe, Display parameters: 7,5 digit, Frequency measuring accuracy: ±0.004%, Capacitance measuring accuracy: ±(0.4%+ 0.1% range), AC current measuring accuracy: ±(0.07% + 0.04% range), DC voltage measuring accuracy: ±(0.0008% + 0.0002% range), DC current measuring accuracy: ±(0.007% + 0.001% range), AC voltage measuring accuracy: ±(0.02% + 0.02% range), Resistance measuring accuracy: ±(0.002%+0.0005% range), Kind of display used: LCD TFT 4,3", Supply voltage: 100...240V AC, Interface: LAN; USB, кількість в упаковці: 1 шт.
Інші пропозиції 34470A за ціною від 339856.36 грн до 378307.55 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||
---|---|---|---|---|---|---|---|---|---|
![]() |
34470A | Виробник : KEYSIGHT TECHNOLOGIES |
![]() tariffCode: 90303200 Messwert Wechselspannung, max.: 750V Messwert Widerstand, max.: 1Gohm Messwert Gleichspannung, max.: 1kV Messwert Gleichstrom, max.: 10A rohsCompliant: Y-EX hazardous: false rohsPhthalatesCompliant: YES usEccn: 3A992.a Netzsteckertyp: EU, UK Herstellergewährleistung: 3 Jahre euEccn: NLR Anzahl der Stellen: 7.5 DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Diode, Frequenz, Widerstand, Temperatur DMM-Konnektivität: LAN / LXI, USB Produktpalette: Truevolt Series productTraceability: No Messwert Wechselstrom, max.: 10A SVHC: No SVHC (17-Jan-2023) |
на замовлення 9 шт: термін постачання 21-31 дні (днів) |
|
||||
![]() |
34470A | Виробник : KEYSIGHT |
![]() Description: Benchtop multimeter; LCD TFT 4,3"; 7,5 digit; 480x272; 3÷300kHz Measurement memory: 50000 Display resolution: 480x272 Dimensions: 261x104x303mm Standard equipment: calibration certificate; CD with documentation; mains cable; test leads; USB cable Measuring instrument features: autoranging; graphical display of measurement results; measure with Truevolt confidence; MIN/MAX/MEDIUM function Type of meter: benchtop multimeter Continuity test: acoustic indication Sampling: 5000x/s Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use. True effective value measurement: True RMS AC Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; resistance (2-wire); resistance (4-wire); temperature AC current measuring range: 100µA; 1mA; 10mA; 100mA; 1A Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ; 1GΩ DC current measuring range: 1µA; 10µA; 100µA; 1mA; 10mA; 100mA; 1A; 3A DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV AC voltage measuring range: 100mV; 1V; 10V; 100V; 750V Frequency measuring range: 3...300kHz Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF Diode test: 5V Supply voltage 400Hz: 100...120V AC Connectors for the country: Europe Display parameters: 7,5 digit Frequency measuring accuracy: ±0.004% Capacitance measuring accuracy: ±(0.4%+ 0.1% range) AC current measuring accuracy: ±(0.07% + 0.04% range) DC voltage measuring accuracy: ±(0.0008% + 0.0002% range) DC current measuring accuracy: ±(0.007% + 0.001% range) AC voltage measuring accuracy: ±(0.02% + 0.02% range) Resistance measuring accuracy: ±(0.002%+0.0005% range) Kind of display used: LCD TFT 4,3" Supply voltage: 100...240V AC Interface: LAN; USB кількість в упаковці: 1 шт |
на замовлення 1 шт: термін постачання 14-21 дні (днів) |
|
