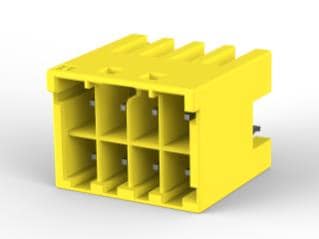

4-1971906-4 TE Connectivity AMP Connectors

Description: CONN HEADER VERT 8POS 3.3MM, Row Spacing - Mating: 0.205" (5.20mm), Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled, Overall Contact Length: 0.575" (14.60mm), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.561" (14.25mm), Contact Length - Post: 0.118" (3.00mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish - Mating: Tin, Pitch - Mating: 0.130" (3.30mm), Insulation Color: Yellow, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Kinked Pin, Solder, Number of Positions Loaded: All, Fastening Type: Latch Holder, Contact Type: Male Pin, Operating Temperature: -30°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 8, Mounting Type: Through Hole, Current Rating (Amps): Varies by Wire Gauge, Voltage Rating: 250VAC, Connector Type: Header, Features: Board Guide, Packaging: Tray.
