5-794626-0

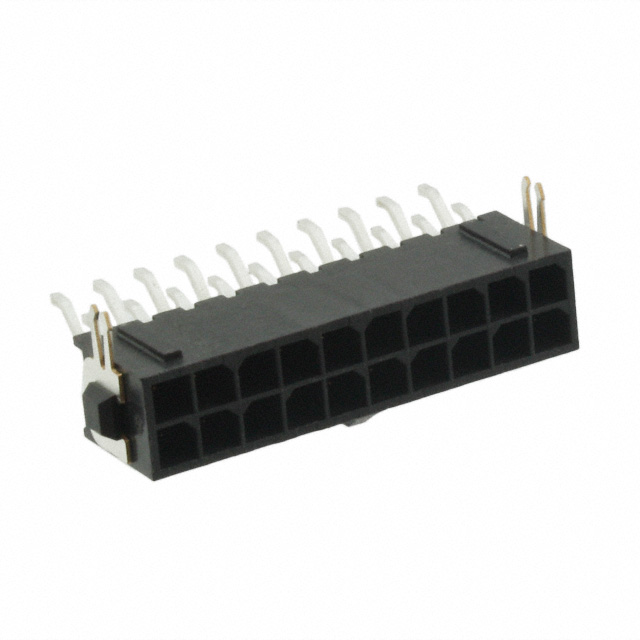

5-794626-0 TE Connectivity AMP Connectors

product-5-794626-0.datasheet.pdf Виробник: TE Connectivity AMP Connectors
Description: CONN HEADER SMD R/A 20POS 3MM
Features: Board Lock
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.290" (7.37mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
Row Spacing - Mating: 0.118" (3.00mm)
на замовлення 900 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна без ПДВ
150+471.41 грн
300+ 451.27 грн
750+ 424.41 грн
Мінімальне замовлення: 150
Відгуки про товар
Написати відгук

Технічний опис 5-794626-0 TE Connectivity AMP Connectors

Description: CONN HEADER SMD R/A 20POS 3MM, Features: Board Lock, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 250V, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Surface Mount, Right Angle, Number of Positions: 20, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.118" (3.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.290" (7.37mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.118" (3.00mm).

Інші пропозиції 5-794626-0 за ціною від 336.96 грн до 623.11 грн

Фото Назва Виробник Інформація Доступність
Ціна без ПДВ
5-794626-0 5-794626-0 Виробник : TE Connectivity / AMP product-5-794626-0.datasheet.pdf Pin & Socket Connectors 20P MICRO MNL ASSY R/A,SMT,LF
на замовлення 210 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна без ПДВ
1+609.89 грн
10+ 523.82 грн
100+ 390.24 грн
300+ 389.57 грн
600+ 374.92 грн
1050+ 337.63 грн
5100+ 336.96 грн
5-794626-0 5-794626-0 Виробник : TE Connectivity AMP Connectors product-5-794626-0.datasheet.pdf Description: CONN HEADER SMD R/A 20POS 3MM
Features: Board Lock
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.290" (7.37mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
Row Spacing - Mating: 0.118" (3.00mm)
на замовлення 1182 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна без ПДВ
1+623.11 грн
10+ 539.82 грн
5-794626-0 5-794626-0 Виробник : TE Connectivity eng_cs_82181_softshell_high_density_0508.pdf Conn Power HDR 20 POS 3mm Solder RA SMD 20 Terminal 1 Port Tray
товар відсутній
