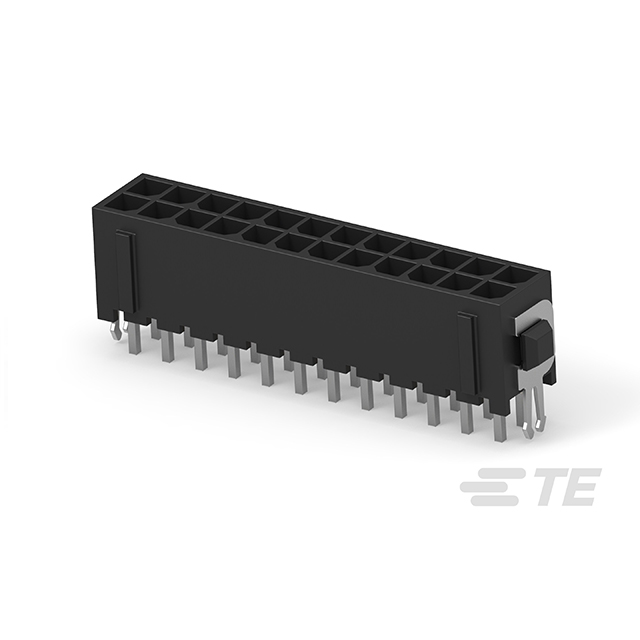

5-794680-4 TE Connectivity

Description: CONN HEADER VERT 24POS 3MM, Features: Board Lock, Packaging: Tray, Connector Type: Header, Voltage Rating: 250V, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 24, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.118" (3.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 100.0µin (2.54µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.125" (3.18mm), Insulation Height: 0.364" (9.25mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.118" (3.00mm).
