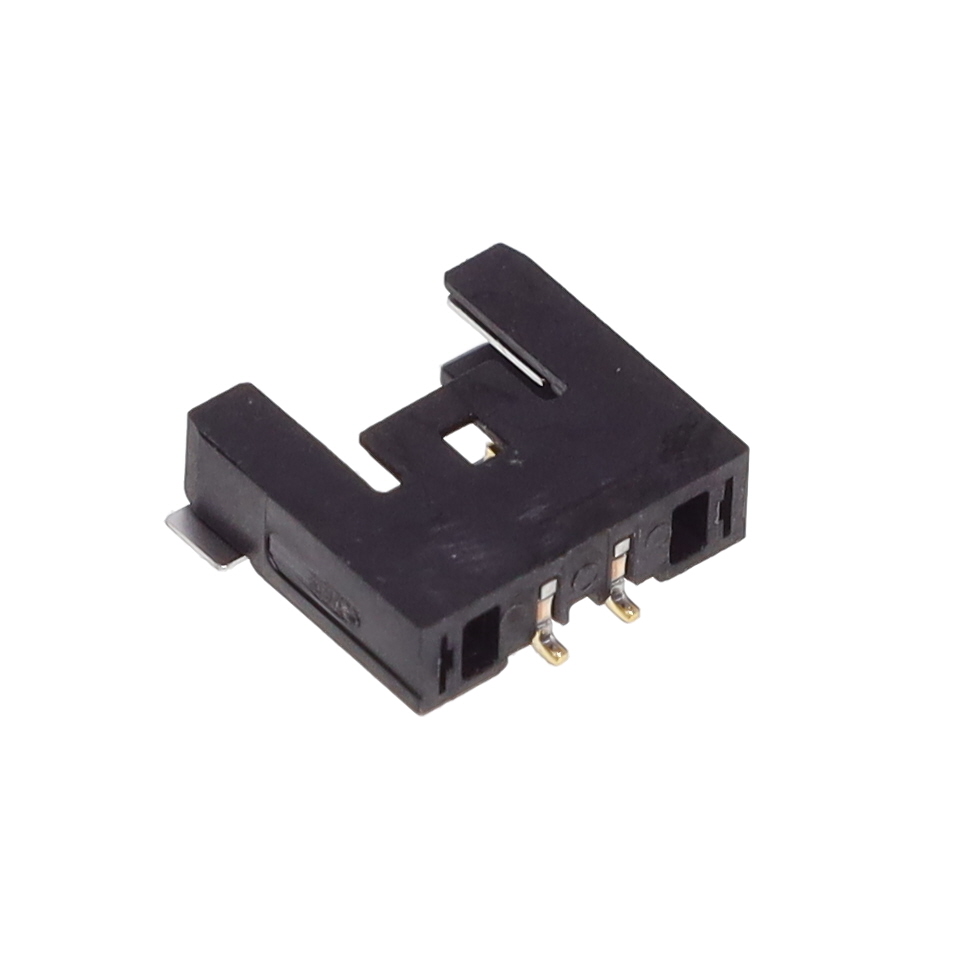

5040500291 Molex
Виробник: Molex
Description: CONN HEADER SMD R/A 2POS 1.5MM
Packaging: Tape & Reel (TR)
Features: Solder Retention
Connector Type: Header
Voltage Rating: 150V
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount, Right Angle
Number of Positions: 2
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Blade
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.059" (1.50mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.94µin (0.100µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Rectangular
Insulation Height: 0.079" (2.00mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
| Кількість | Ціна |
|---|---|
| 2700+ | 42.60 грн |
| 5400+ | 39.07 грн |
| 8100+ | 37.97 грн |
| 13500+ | 34.37 грн |
Відгуки про товар
Написати відгук
Технічний опис 5040500291 Molex
Description: CONN HEADER SMD R/A 2POS 1.5MM, Packaging: Tape & Reel (TR), Features: Solder Retention, Connector Type: Header, Voltage Rating: 150V, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Surface Mount, Right Angle, Number of Positions: 2, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Blade, Fastening Type: Detent Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.059" (1.50mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.94µin (0.100µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Rectangular, Insulation Height: 0.079" (2.00mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon.
Інші пропозиції 5040500291 за ціною від 37.02 грн до 76.16 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
5040500291 | Виробник : Molex |
Description: CONN HEADER SMD R/A 2POS 1.5MM Packaging: Cut Tape (CT) Features: Solder Retention Connector Type: Header Voltage Rating: 150V Current Rating (Amps): Varies by Wire Gauge Mounting Type: Surface Mount, Right Angle Number of Positions: 2 Number of Rows: 1 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 105°C Contact Type: Male Blade Fastening Type: Detent Lock Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.059" (1.50mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 3.94µin (0.100µm) Contact Finish - Post: Gold Part Status: Active Contact Shape: Rectangular Insulation Height: 0.079" (2.00mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA), Nylon |
на замовлення 21073 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
 |
504050-0291 | Виробник : Molex | Headers & Wire Housings 1.5MM PicoLock SMT HDR RA POS SIDLCK 2P |
на замовлення 16751 шт: термін постачання 21-30 дні (днів) |
|
