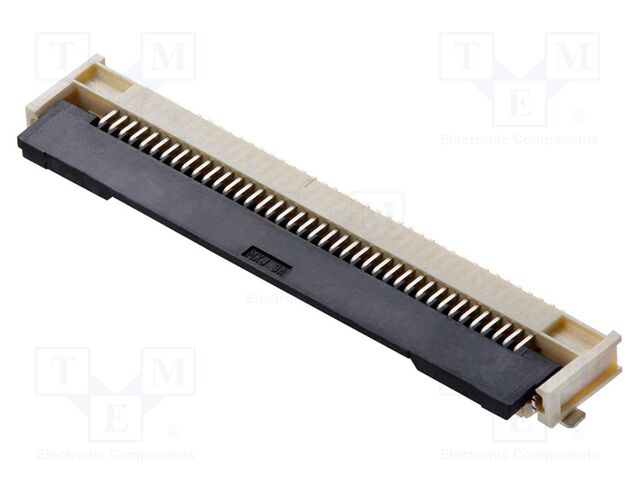

5051105291 Molex

Description: CONN FFC BOTTOM 52POS 0.5MM R/A, Connector/Contact Type: Contacts, Bottom, Flat Flex Type: FFC, FPC, Cable End Type: Straight, Tabbed, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, FFC, FCB Thickness: 0.30mm, Contact Material: Phosphor Bronze, Actuator Material: Polyamide (PA), Nylon, Glass Filled, Material Flammability Rating: UL94 V-0, Locking Feature: Flip Lock, Height Above Board: 0.075" (1.90mm), Termination: Solder, Operating Temperature: -40°C ~ 105°C, Pitch: 0.020" (0.50mm), Number of Positions: 52, Mounting Type: Surface Mount, Right Angle, Voltage Rating: 50V, Contact Finish: Gold, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR).
