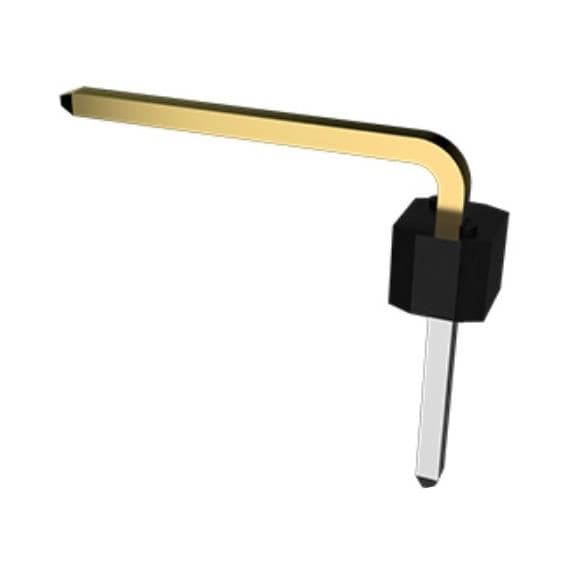

55101-T1102LF Amphenol ICC (FCI)

Description: CONN HEADER R/A 2POS 2.54MM, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 100.0µin (2.54µm), Contact Finish - Mating: Tin, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Style: Board to Board, Number of Rows: 1, Number of Positions: 2, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): 5A, Voltage Rating: 110V, Connector Type: Header, Packaging: Bag, Contact Length - Mating: 0.230" (5.84mm), Shrouding: Unshrouded, Insulation Height: 0.140" (3.56mm), Contact Length - Post: 0.090" (2.29mm), Contact Shape: Square.
