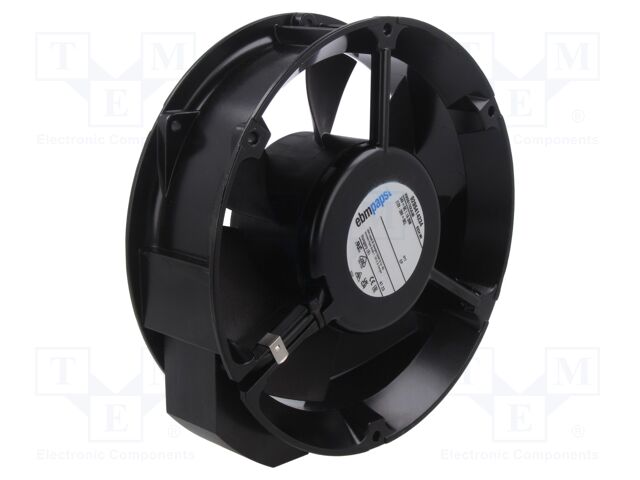

6224N

Виробник: EBM-PAPST
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; Ø172x51mm; 410m3/h; 55dBA; ball; 3400rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: Ø172x51mm
Power consumption: 18W
Fan efficiency: 410m³/h
Noise level: 55dBA
Kind of Bearing: ball
Rotational rate/speed: 3400rpm
Impeller material: thermoplastic
Enclosure material: aluminium
Leads: connectors
Operating temperature: -10...70°C
Leads dimensions: 3x0.5mm
Operating voltage: 12...28V DC

Виробник: ebm-papst Inc.
Description: FAN AXL 171.5X50.8MM 24VDC TERM
Packaging: Bulk
Voltage - Rated: 24VDC
Size / Dimension: Round - 171.5mm Dia
Bearing Type: Ball
RPM: 3400 RPM
Air Flow: 241.3 CFM (6.76m³/min)
Width: 50.80mm
Weight: 1.8 lbs (816.5 g)
Operating Temperature: -4 ~ 162°F (-20 ~ 72°C)
Termination: 2 Terminals
Approval Agency: CE, CSA, UL, VDE
Ingress Protection: IP20
Fan Type: Tubeaxial
Noise: 55.0dB(A)
Part Status: Active
Power (Watts): 18 W

Виробник: EBM-PAPST
Description: EBM-PAPST - 6224N - DC-Axiallüfter, Rohraxiallüfter, 24 V, Rund, 172 mm, 51 mm, Kugellager, 241.3 cu.ft/min
tariffCode: 84145925
Versorgungsspannung: 24VDC
euEccn: NLR
Stromanschluss: Klemmen
rohsCompliant: Y-EX
hazardous: false
rohsPhthalatesCompliant: YES
Luftdurchsatz, imperial: 241.3cu.ft/min
Luftdurchsatz, metrisch: 6.76m³/min
Art des Lagers: Kugellager
Nennleistung: 18W
isCanonical: Y
IP-Schutzart: IP20
Spannungstyp: DC
Luftstrom - m3/min: 6.76m³/min
Nennstrom: -
Außentiefe: 51mm
Geräuschentwicklung: 55dBA
Luftstrom - CFM: 241.3cu.ft/min
SVHC: Lead (14-Jun-2023)
Lüfterrahmen: Rund
Produktpalette: 6200N
productTraceability: No
Rahmengröße: 172mm
usEccn: EAR99
Versorgungsspannung, V DC: 24V
Nenndrehzahl: 3400rpm
