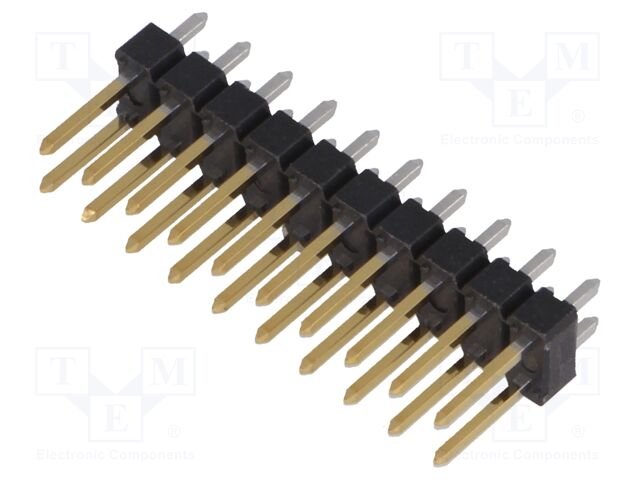

67996-220HLF AMPHENOL COMMUNICATIONS SOLUTIONS
Виробник: AMPHENOL COMMUNICATIONS SOLUTIONS
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 20; THT; BERGSTIK II
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 20
Electrical mounting: THT
Spatial orientation: straight
Contacts pitch: 2.54mm
Connector pinout layout: 2x10
Contact plating: gold-plated
Height: 10.8mm
Plating thickness: 0.38µm
Manufacturer series: BERGSTIK II
Kind of package: bulk
Family: FCI
| Кількість | Ціна |
|---|---|
| 8+ | 63.96 грн |
| 10+ | 55.99 грн |
| 25+ | 52.60 грн |
| 50+ | 46.66 грн |
Відгуки про товар
Написати відгук
Технічний опис 67996-220HLF AMPHENOL COMMUNICATIONS SOLUTIONS
Description: CONN HEADER VERT 20POS 2.54MM, Contact Length - Mating: 0.230" (5.84mm), Row Spacing - Mating: 0.100" (2.54mm), Overall Contact Length: 0.425" (10.80mm), Shrouding: Unshrouded, Insulation Height: 0.100" (2.54mm), Contact Length - Post: 0.095" (2.41mm), Contact Shape: Square, Part Status: Active, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Mating: Gold or Gold, GXT™, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -65°C ~ 125°C, Style: Board to Board, Number of Rows: 2, Number of Positions: 20, Mounting Type: Through Hole, Current Rating (Amps): 3A per Contact, Connector Type: Header, Packaging: Bag.
Інші пропозиції 67996-220HLF за ціною від 36.30 грн до 92.10 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
67996-220HLF | Amphenol ICC (FCI) |
Description: CONN HEADER VERT 20POS 2.54MM Contact Length - Mating: 0.230" (5.84mm) Row Spacing - Mating: 0.100" (2.54mm) Overall Contact Length: 0.425" (10.80mm) Shrouding: Unshrouded Insulation Height: 0.100" (2.54mm) Contact Length - Post: 0.095" (2.41mm) Contact Shape: Square Part Status: Active Contact Finish Thickness - Mating: 15.0µin (0.38µm) Contact Finish - Mating: Gold or Gold, GXT™ Pitch - Mating: 0.100" (2.54mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Male Pin Operating Temperature: -65°C ~ 125°C Style: Board to Board Number of Rows: 2 Number of Positions: 20 Mounting Type: Through Hole Current Rating (Amps): 3A per Contact Connector Type: Header Packaging: Bag |
на замовлення 2449 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
 |
67996-220HLF | Amphenol FCI |
Headers & Wire Housings 20P DR UNSHRD HRD .38 GOLD OVER NI |
на замовлення 3827 шт: термін постачання 21-30 дні (днів) |
|
| 67996-220HLF |
|
Виробник: Amphenol ICC (FCI)
Description: CONN HEADER VERT 20POS 2.54MM
Contact Length - Mating: 0.230" (5.84mm)
Row Spacing - Mating: 0.100" (2.54mm)
Overall Contact Length: 0.425" (10.80mm)
Shrouding: Unshrouded
Insulation Height: 0.100" (2.54mm)
Contact Length - Post: 0.095" (2.41mm)
Contact Shape: Square
Part Status: Active
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Mating: Gold or Gold, GXT™
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -65°C ~ 125°C
Style: Board to Board
Number of Rows: 2
Number of Positions: 20
Mounting Type: Through Hole
Current Rating (Amps): 3A per Contact
Connector Type: Header
Packaging: Bag
Description: CONN HEADER VERT 20POS 2.54MM
Contact Length - Mating: 0.230" (5.84mm)
Row Spacing - Mating: 0.100" (2.54mm)
Overall Contact Length: 0.425" (10.80mm)
Shrouding: Unshrouded
Insulation Height: 0.100" (2.54mm)
Contact Length - Post: 0.095" (2.41mm)
Contact Shape: Square
Part Status: Active
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Mating: Gold or Gold, GXT™
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -65°C ~ 125°C
Style: Board to Board
Number of Rows: 2
Number of Positions: 20
Mounting Type: Through Hole
Current Rating (Amps): 3A per Contact
Connector Type: Header
Packaging: Bag
на замовлення 2449 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 4+ | 82.46 грн |
| 10+ | 64.29 грн |
| 300+ | 47.51 грн |
| 600+ | 41.93 грн |
| 1200+ | 39.43 грн |
| 67996-220HLF |
|
Виробник: Amphenol FCI
Headers & Wire Housings 20P DR UNSHRD HRD .38 GOLD OVER NI
Headers & Wire Housings 20P DR UNSHRD HRD .38 GOLD OVER NI
на замовлення 3827 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 4+ | 92.10 грн |
| 10+ | 70.92 грн |
| 100+ | 49.20 грн |
| 600+ | 43.70 грн |
| 1200+ | 43.28 грн |
| 2700+ | 38.27 грн |
| 5100+ | 36.30 грн |
